Name: 1594630000
Brand: Weidmüller
SKU: 1594630000
Price: 1.97000 USD
Availability: InStock

new-10%

1594630000

Manufacturer part number:1594630000

Manufacturer:Weidmüller

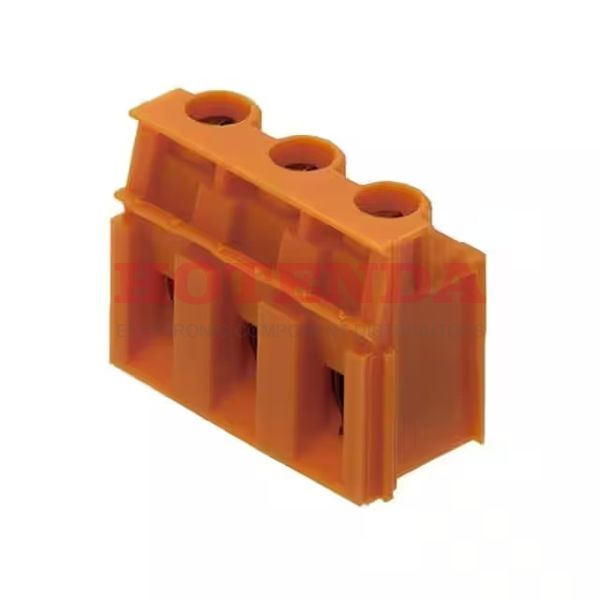

Description:0.295 7.50mm Orange Bulk Polyamide (PA66), Nylon 6/6 Through Hole Horizontal with Board Screw - Clamping Yoke, Tension Sleeve 1 Levels 12-26 AWG Omnimate LP

Case Package:SOT-23

Datasheet:1594630000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA66), Nylon 6/6
Contact Material - Plating	Copper Alloy - Tin Plated
Operating Temperature	-20°C~100°C
Packaging	Bulk
Series	Omnimate LP
Published	2002
Feature	Interlocking (Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Termination	Solder
ECCN Code	EAR99
Color	Orange
Number of Rows	1
Pitch	0.295 7.50mm
Orientation	Straight
Wire Gauge	12-26 AWG
Voltage	300V
Max Current Rating	15A
Number of Levels	1
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	12 AWG
Number of Decks	1
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	3
Safety Approval	UL; VDE; CSA
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Clamping Yoke, Tension Sleeve
Screw Thread	M3
Number of Positions Per Level	3
Height	17mm
Width	11mm
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-2
Lead Free	Lead Free

1594630000 Product Details

1594630000 Overview

There is a mounting type of Through Hole for this device.It is necessary to use a Bulk case for packaging the product.This product is part of the Omnimate LP Series.In many ways, its Interlocking (Side) feature makes it more powerful.Through Hole is used to mount the part.In this case, the device operates at -20°C~100°C Operating Temperature.
