Name: 1526610000
Brand: Weidmüller
SKU: 1526610000
Availability: InStock

new-10%

1526610000

Manufacturer part number:1526610000

Manufacturer:Weidmüller

Description:1526610000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1526610000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper Alloy
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-50°C~100°C
Packaging	Bulk
Published	2008
Series	Omnimate BL
JESD-609 Code	e3
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Termination	Screw
Type	Plug, Female Sockets
Number of Positions	4
Color	Black
Number of Rows	1
Voltage - Rated	400V
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.200 5.08mm
Orientation	Right Angle
Ingress Protection	IP20
Depth	20mm
Insulation Height	0.598 15.19mm
Current Rating	19A
Termination Style	Screw - Clamping Yoke (Tension Sleeve)
Number of Contacts	4
Voltage	300V
Max Supply Voltage	300V
Max Current Rating	15A
Number of Levels	1
Current	15A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	12 AWG
Wire/Cable Gauge	26 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	12-26 AWG
Torque - Screw	0.4-0.5 Nm (3.5-4.4 Lb-In)
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Current - IEC	19A
Screw Size	M2.5
Length	20.32mm
Width	20mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

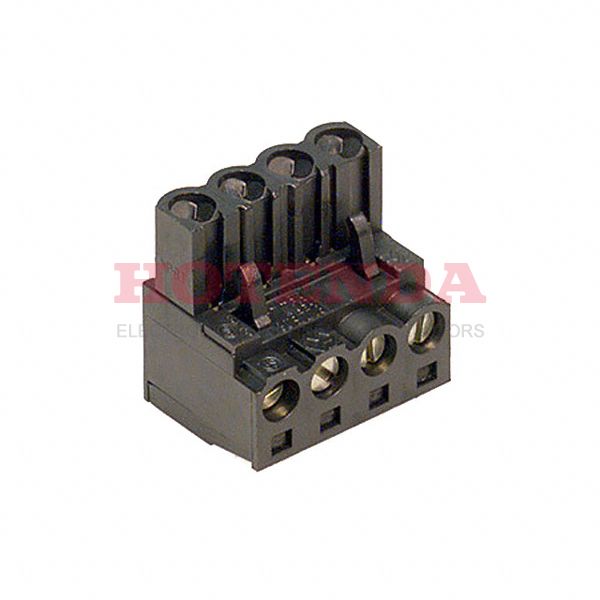

1526610000 Product Details

1526610000 Overview

Free Hanging (In-Line) is the mounting type for the device.An Bulk case is utilized for packaging the product.Specifically, it is one of the products in the Omnimate BL Series.Its Retention Latches (Non-Wire Side) feature renders it more powerful in many ways.The part is mounted by Cable, Free Hanging.Devices operate at -50°C~100°C operating temperatures.Ensure that this chip's supply voltage does not exceed 300V volts.Other Plug, Female Sockets products share lots of benefits with this part.
