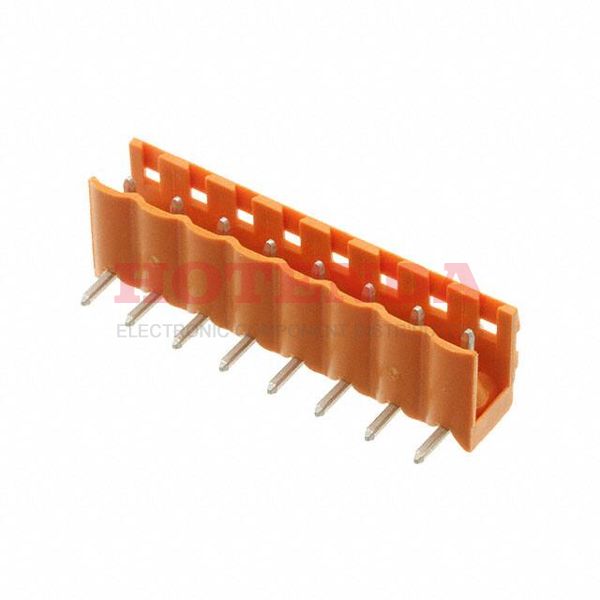

Name: 1513260000
Brand: Weidmüller
SKU: 1513260000
Availability: InStock

new-10%

1513260000

Manufacturer part number:1513260000

Manufacturer:Weidmüller

Description:1513260000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1513260000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	14 Weeks
Contact Material	Copper Alloy
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-20°C~100°C
Packaging	Bulk
Published	2002
Series	Omnimate SL
Pbfree Code	yes
Part Status	Active
Type	Header, Male Pins, Shrouded (2 Side)
Color	Orange
Number of Rows	1
Gender	Male
Voltage - Rated	300V
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.200 5.08mm
Total Number of Contacts	8
Orientation	Right Angle
Depth	12mm
Insulation Height	0.335 8.51mm
Current Rating	15A
Termination Style	Solder
Insulation Resistance	1MOhm
Voltage	300V
Contact Tail Length	0.177 4.50mm
Max Current Rating	15A
Number of Levels	1
Current	15A
Contact Mating Finish	Tin
Voltage - IEC	250V
Header Orientation	90°, Right Angle
Current - IEC	12A
Number of Positions Per Level	8
Width	12mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1513260000 Product Details

1513260000 Overview

It's mounted Through Hole.A Bulk case is used for packaging.The product is part of the Omnimate SL Series.There's a Through Hole on the part.-20°C~100°C Operating Temperature is used by the device.This part shares lots of benefits with other Header, Male Pins, Shrouded (2 Side) products.
