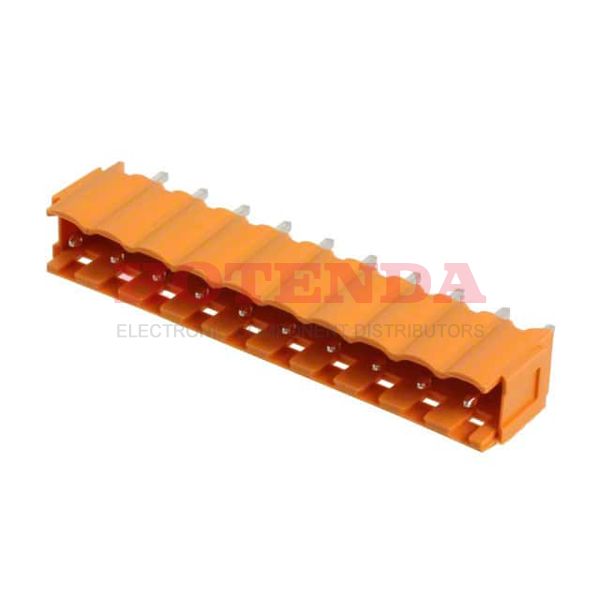

Name: 1524960000
Brand: Weidmüller
SKU: 1524960000
Price: 3.47000 USD
Availability: InStock

new-10%

1524960000

Manufacturer part number:1524960000

Manufacturer:Weidmüller

Description:1524960000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1524960000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	6 Weeks
Contact Material	Copper Alloy
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-20°C~100°C
Packaging	Bulk
Published	2002
Series	Omnimate SL
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Type	Header, Male Pins, Shrouded (4 Side)
Color	Orange
Number of Rows	1
Voltage - Rated	300V
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.200 5.08mm
Total Number of Contacts	10
Orientation	Straight
Depth	8.5mm
Insulation Height	0.472 12.00mm
Current Rating	15A
Termination Style	Solder
UL Flammability Code	94V-0
Insulation Resistance	1MOhm
Voltage	300V
Contact Tail Length	0.177 4.50mm
Max Current Rating	15A
Number of Levels	1
Current	15A
Contact Mating Finish	Tin
Voltage - IEC	250V
Header Orientation	Vertical
Current - IEC	12A
Number of Positions Per Level	10
Width	8.5mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1524960000 Product Details

1524960000 Overview

There is a mounting type of Through Hole for this device.This product is packaged in a case marked Bulk.The product is part of the Omnimate SL Series.In this case, Through Hole mounts the part.Devices operate at -20°C~100°C operating temperatures.
