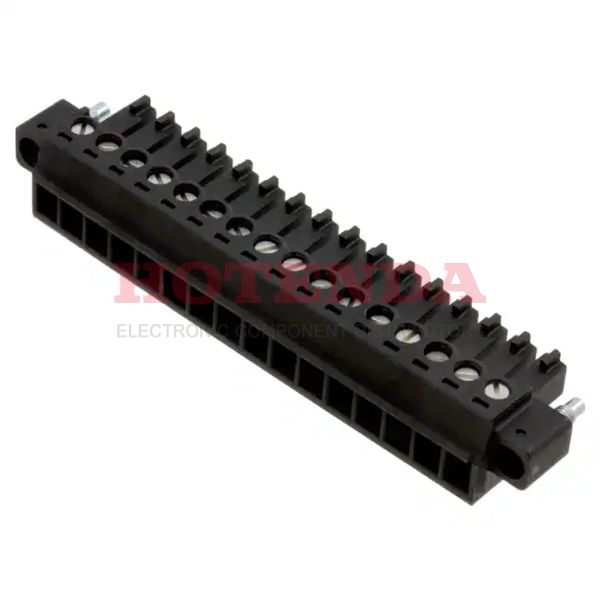

1967870

1967870

1967870

Phoenix Contact

1967870 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

1967870 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 14 Weeks
Contact PlatingTin
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Weight 12.589995g
PackagingBulk
Published 2011
Series COMBICON MC
Feature Mating Flange
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Connector Type Screw, Socket
Type Plug, Female Sockets
Number of Positions 16
Color Black
Voltage - Rated 160V
HTS Code8536.69.40.40
Pitch 0.150 3.81mm
Insulation Height 0.437 11.10mm
Reach Compliance Code not_compliant
Current Rating8A
Termination Style Screw - Rising Cage Clamp
Voltage 300V
Number of Levels 1
Current 8A
Wire Gauge (Max) 16 AWG
Wire Gauge (Min) 28 AWG
Wire Gauge or Range - AWG 14-30 AWG
Voltage - IEC 160V
Torque - Screw 0.22-0.25 Nm (1.9-2.2 Lb-In)
Plug Wire Entry 180°
Wire Gauge or Range - mm² 0.14-1.5mm2
Wire Strip Length 7mm
Screw Size M2
Height 16.1mm
Length 11.1mm
Width 71.35mm
RoHS StatusRoHS Compliant
In-Stock:374 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$14.753240$14.75324
10$13.918151$139.18151
100$13.130331$1313.0331
500$12.387105$6193.5525
1000$11.685948$11685.948

1967870 Product Details

1967870 Overview


It comes in Screw, Socket packaging.Free Hanging (In-Line) is the mount type.We use a Bulk case to package the product.A member of the COMBICON MC Series.It is more powerful in many ways due to its Mating Flange feature.Free Hanging is mounting the part.In addition to its benefits, this part also shares many with the other products in the Plug, Female Sockets series.

1967870 Features


COMBICON MC series

1967870 Applications


There are a lot of Phoenix Contact 1967870 Terminal Blocks applications.

  • Control panels
  • Instrumentation
  • Communication
  • Variable speed/frequency drivers
  • Anywhere power is distributed
  • All Electrical Machinery
  • Military Technology
  • Blowers
  • LED municipal outdoor and street lighting
  • Automotive Electronics
