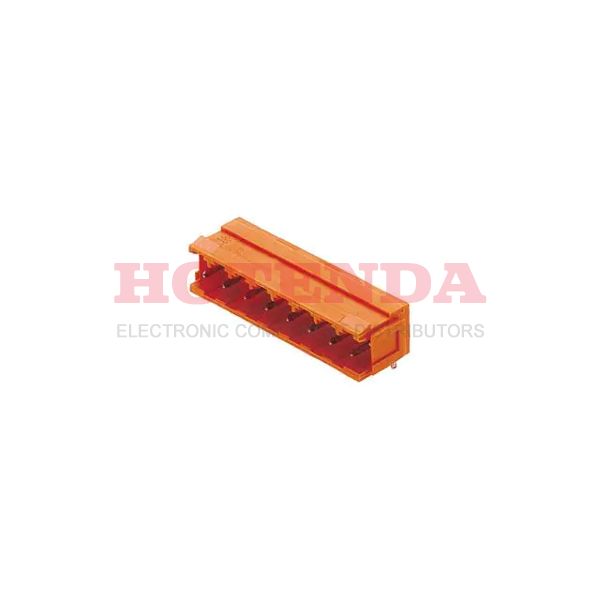

Name: 1351760000
Brand: Weidmüller
SKU: 1351760000
Price: 1.53000 USD
Availability: InStock

new-10%

1351760000

Manufacturer part number:1351760000

Manufacturer:Weidmüller

Description:1351760000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1351760000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper Alloy
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polybutylene Terephthalate (PBT), Glass Filled
Operating Temperature	-20°C~120°C
Packaging	Bulk
Published	2002
Series	Unimate SLA
Pbfree Code	yes
Part Status	Active
Type	Header, Male Pins, Shrouded (4 Side)
Color	Orange
Number of Rows	1
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.200 5.08mm
Total Number of Contacts	5
Insulation Height	0.370 9.40mm
Termination Style	Solder
UL Flammability Code	94V-0
Insulation Resistance	1MOhm
Voltage	300V
Contact Tail Length	0.177 4.50mm
Number of Levels	1
Current	10A
Contact Mating Finish	Tin
Voltage - UL	300V
Voltage - IEC	250V
Header Orientation	90°, Right Angle
Number of Positions Per Level	5
Height	9.4mm
Width	12mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1351760000 Product Details

1351760000 Overview

There is a Through Hole mounting type for the device.A Bulk case is used to package the product.Specifically, it is one of the products in the Unimate SLA Series.In this case, Through Hole mounts the part.Device runs at -20°C~120°C Operating Temperature.Other Header, Male Pins, Shrouded (4 Side) products benefit from this part as well.
