Name: 1289280000
Brand: Weidmüller
SKU: 1289280000
Price: 3.60000 USD
Availability: InStock

new-10%

1289280000

Manufacturer part number:1289280000

Manufacturer:Weidmüller

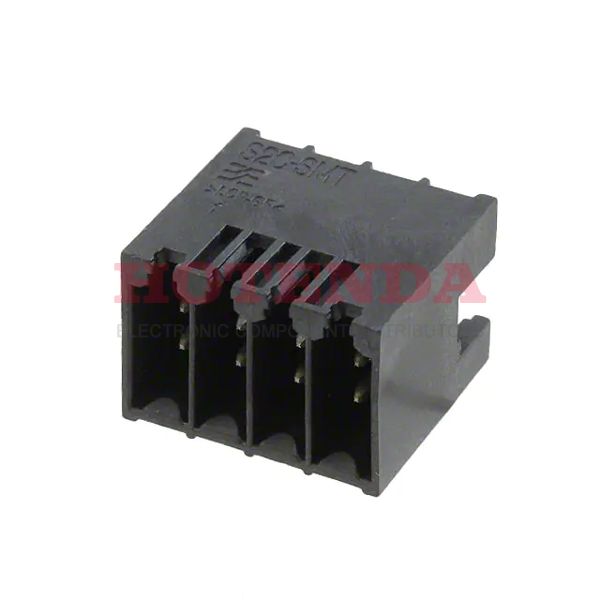

Description:Bulk 0.138 3.50mm Black 2 Levels Through Hole Header, Male Pins, Shrouded (4 Side) Omnimate S2C Liquid Crystal Polymer (LCP), Glass Filled Tin Copper Alloy

Case Package:SOT-23

Datasheet:1289280000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper Alloy
Mounting Type	Through Hole
Housing Material	Liquid Crystal Polymer (LCP), Glass Filled
Operating Temperature	-50°C~120°C
Packaging	Bulk
Series	Omnimate S2C
Published	2012
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	8
Color	Black
Pitch	0.138 3.50mm
Ingress Protection	IP20
Insulation Height	0.425 10.80mm
Termination Style	Solder
Contact Tail Length	0.126 3.20mm
Number of Levels	2
Contact Mating Finish	Tin
Voltage - UL	150V
Current - UL	10A
Voltage - IEC	200V
Positions Per Level	4
Header Orientation	90°, Right Angle
Current - IEC	13.4A
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant

1289280000 Product Details

1289280000 Overview

A Through Hole mounting type is specified for the device.A Bulk case is used for packaging.The product belongs to the Omnimate S2C Series.In this case, the device runs at -50°C~120°C Operating Temperature.It shares many benefts with other Header, Male Pins, Shrouded (4 Side) products.
