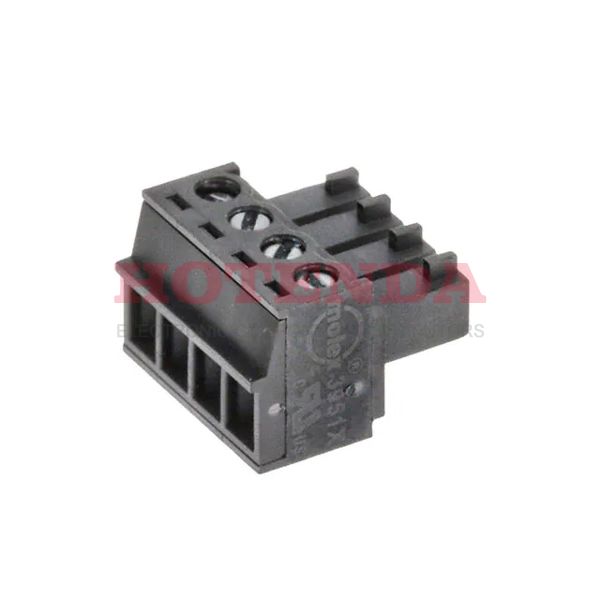

0395100004

0395100004

0395100004

Molex

0395100004 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Molex stock available on our website

SOT-23

0395100004 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 12 Weeks
Contact MaterialPhosphor Bronze
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA66), Nylon 6/6
Operating Temperature-40°C~115°C
PackagingBulk
Series Eurostyle ESE 39510
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Plug, Female Sockets
Number of Positions 4
Color Black
Pitch 0.150 3.81mm
Insulation Height 0.437 11.10mm
Termination Style Screw - Rising Cage Clamp
Number of Levels 1
Contact Mating Finish Tin
Voltage - UL 300V
Wire Gauge or Range - AWG 16-30 AWG
Current - UL 8A
Torque - Screw 0.23 Nm (2.0 Lb-In)
Plug Wire Entry 180°
Wire Strip Length 6.5mm
Material Flammability Rating UL94 V-0
RoHS StatusROHS3 Compliant
In-Stock:4702 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$1.714846$1.714846
10$1.617779$16.17779
100$1.526207$152.6207
500$1.439818$719.909
1000$1.358319$1358.319

0395100004 Product Details

0395100004 Overview


Its mounting type is Free Hanging (In-Line).To package the product, we use a Bulk case.The product belongs to the Eurostyle ESE 39510 Series.In this case, the device operates at -40°C~115°C Operating Temperature.There are a lot of advantages this part has in common with other Plug, Female Sockets parts.

0395100004 Features


Eurostyle ESE 39510 series

0395100004 Applications


There are a lot of Molex 0395100004 Terminal Blocks applications.

  • Anywhere power is distributed
  • Control panels
  • Electrical substations
  • All Electrical Machinery
  • Data Technology
  • Datacom
  • Communication
  • LED municipal outdoor and street lighting
  • Instrumentation
  • Energy efficient lighting (LED)
