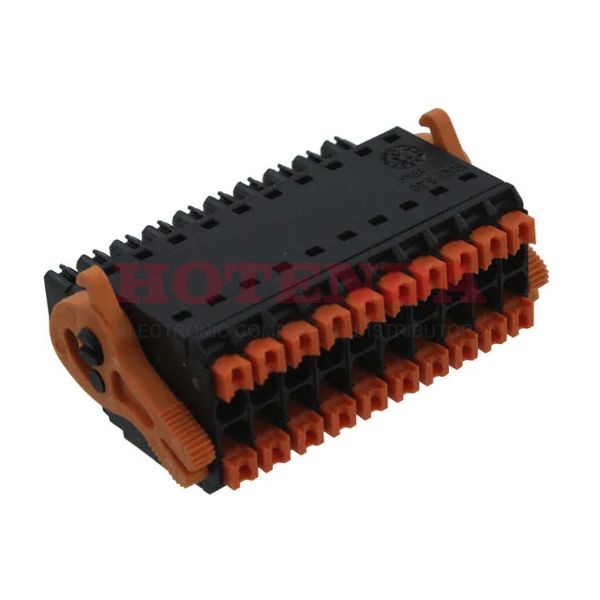

Name: 1278310000
Brand: Weidmüller
SKU: 1278310000
Price: 17.28000 USD
Availability: InStock

new

1278310000

Manufacturer part number:1278310000

Manufacturer:Weidmüller

Description:1278310000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1278310000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	6 Weeks
Contact Material	Copper Alloy
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Insulation Material	Nylon
Housing Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Operating Temperature	-50°C~120°C
Packaging	Bulk
Published	2012
Series	Omnimate B2CF
Feature	Ejector Latches
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
ECCN Code	EAR99
Type	Plug, Female Sockets
Number of Positions	20
Color	Black
Number of Rows	1
Voltage - Rated	300V
HTS Code	8536.69.40.40
Pitch	0.138 3.50mm
Ingress Protection	IP20
Insulation Height	0.598 15.19mm
Current Rating	10A
Termination Style	Screwless - Leg Spring, Push-In Spring
Voltage	300V
Number of Levels	2
Current	10A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	16 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	16-26 AWG
Current - UL	9.5A
Voltage - IEC	320V
Positions Per Level	10
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.14-1.5mm2
Current - IEC	13.4A
Stripping Length	10mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1278310000 Product Details

1278310000 Overview

A Free Hanging (In-Line) mounting type is specified for the device.It has been determined that a Bulk case is necessary to package the product.A member of the Omnimate B2CF Series.It is more powerful in many ways due to its Ejector Latches feature.Mounted by Free Hanging.It runs at -50°C~120°C Operating Temperature.In addition to its benefits, this part also shares many with the other products in the Plug, Female Sockets series.
