Name: 1842911
Brand: Phoenix Contact
SKU: 1842911
Price: 5.10000 USD
Availability: InStock

new-10%

1842911

Manufacturer part number:1842911

Manufacturer:Phoenix Contact

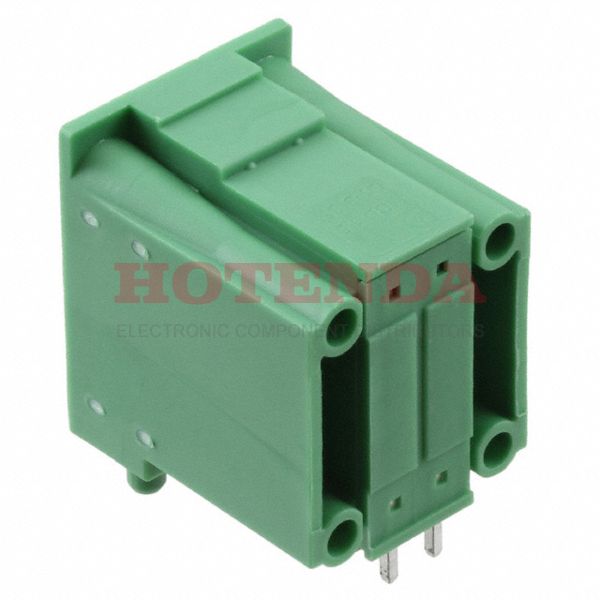

Description:Bulk 0.150 3.81mm Green Through Hole Header, Male Pins, Shrouded (4 Side) COMBICON MCD Polyamide (PA), Nylon

Case Package:SOT-23

Datasheet:1842911 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Weight	117.000013g
Packaging	Bulk
Series	COMBICON MCD
Published	2011
Feature	Board Guide, Mating Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	4
Color	Green
Number of Rows	2
Voltage - Rated	160V
Pitch	0.150 3.81mm
Orientation	Right Angle
Depth	21.9mm
Insulation Height	0.894 22.71mm
Current Rating	8A
Termination Style	Solder
Voltage	300V
Contact Tail Length	0.138 3.50mm
Max Current Rating	8A
Current	8A
Number of Decks	1
Voltage - IEC	320V
Number of Ways	2
Safety Approval	UL
Header Orientation	90°, Right Angle
Height	21.9mm
Length	18.01mm
Width	26.2mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1842911 Product Details

1842911 Overview

Currently, it is packaged in Plug.The mounting type of the device is Through Hole.A Bulk case is used to package the product.A product of the COMBICON MCD Series, it belongs to the range of products of that series.A number of features make the Board Guide, Mating Flange feature more powerful.Through Hole represents the mounting point for the part.As with other Header, Male Pins, Shrouded (4 Side) products, this part also offers a wide range of benefits.
