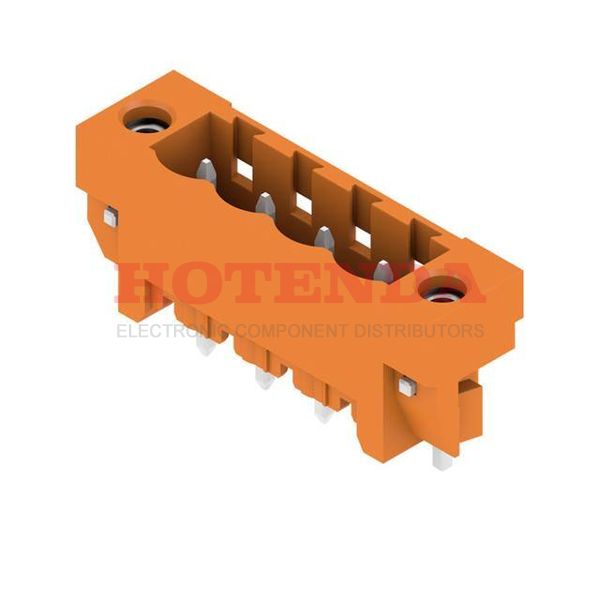

Name: 1147950000
Brand: Weidmüller
SKU: 1147950000
Price: 2.07000 USD
Availability: InStock

new-10%

1147950000

Manufacturer part number:1147950000

Manufacturer:Weidmüller

Description:1147950000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1147950000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	14 Weeks
Contact Material	Copper Alloy
Mount	Through Hole
Mounting Type	Through Hole
Insulation Material	Nylon
Housing Material	Polyamide (PA), Nylon, Glass Filled
Operating Temperature	-50°C~100°C
Packaging	Bulk
Published	2015
Series	Omnimate SL
Feature	Mating Flange, Solder Retention
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	4
Color	Orange
Gender	Male
Voltage - Rated	300V
Pitch	0.200 5.08mm
Insulation Height	0.472 12.00mm
Current Rating	24A
Termination Style	Solder
Approval Agency	cURus
Contact Tail Length	0.126 3.20mm
Number of Levels	1
Contact Mating Finish	Tin
Current - UL	18.5A
Voltage - IEC	400V
Header Orientation	Vertical
Hole Diameter	1.3 mm
Material Flammability Rating	UL94 V-0
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1147950000 Product Details

1147950000 Overview

There is a Through Hole mounting type for the device.It is necessary to use a Bulk case for packaging the product.Among the products in the Omnimate SL Series, it is one of the most popular.Its Mating Flange, Solder Retention feature makes it more powerful in a number of ways.Through Hole is used to mount the part.Running in -50°C~100°C Operating Temperature.Compared to other Header, Male Pins, Shrouded (4 Side) products, this part has a lot of benefits to offer.
