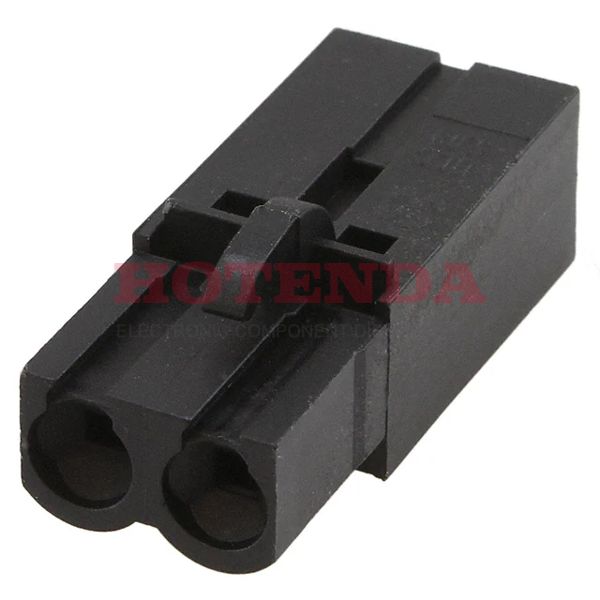

Name: 1711960000
Brand: Weidmüller
SKU: 1711960000
Price: 0.76000 USD
Availability: InStock

new-10%

1711960000

Manufacturer part number:1711960000

Manufacturer:Weidmüller

Description:1711960000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1711960000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	COPPER ALLOY
Contact Plating	Tin
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polybutylene Terephthalate (PBT), Glass Filled
Operating Temperature	-50°C~100°C
Packaging	Bulk
Published	2009
Series	Omnimate BL
JESD-609 Code	e3
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Type	Plug Housing for Female Sockets
Number of Positions	2
Color	Black
Number of Rows	1
Contact Finish - Mating	TIN
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.200 5.08mm
Orientation	Straight
Insulation Height	0.397 10.08mm
Termination Style	Crimp
Number of Contacts	2
UL Flammability Code	94V-0
Voltage	300V
Number of Levels	1
Current	10A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	14 AWG
Wire Gauge or Range - AWG	14-26 AWG
Voltage - IEC	400V
Plug Wire Entry	180°
Current - IEC	21A
Height	10.1mm
Length	10.2mm
Width	24.5mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1711960000 Product Details

1711960000 Overview

This device has a Free Hanging (In-Line) mounting type.Packaging the product involves using a Bulk case.It's from the Omnimate BL Series.In many ways, it is more powerful due to its Retention Latches (Non-Wire Side) feature.Cable, Free Hanging is used to mount the part.-50°C~100°C Operating Temperature is the default operating temperature for the device.Compared to other Plug Housing for Female Sockets products, this part has a lot of benefits to offer.
