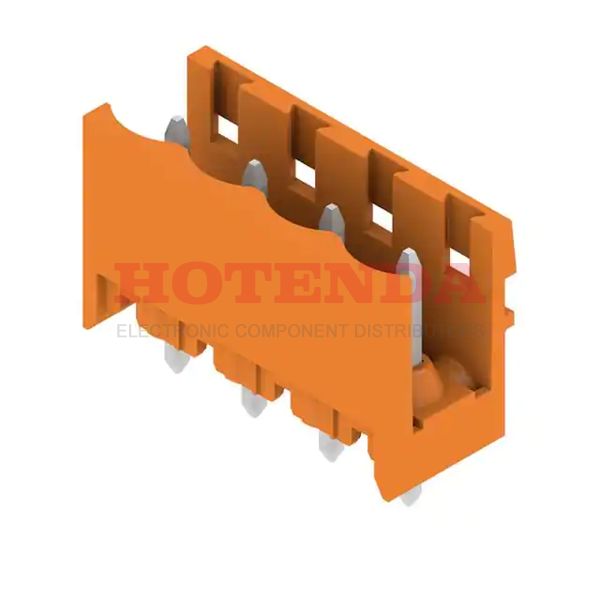

Name: 1146380000
Brand: Weidmüller
SKU: 1146380000
Price: 1.82000 USD
Availability: InStock

new-10%

1146380000

Manufacturer part number:1146380000

Manufacturer:Weidmüller

Description:1146380000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1146380000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Contact Material	Copper Alloy
Mounting Type	Through Hole
Insulation Material	Nylon
Housing Material	Polyamide (PA), Nylon, Glass Filled
Operating Temperature	-50°C~100°C
Packaging	Bulk
Published	2011
Series	Omnimate SL
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Type	Header, Male Pins, Shrouded (2 Side)
Number of Positions	4
Color	Orange
Number of Rows	1
Gender	Male
Voltage - Rated	300V
Pitch	0.200 5.08mm
Insulation Height	0.472 12.00mm
Current Rating	24A
Termination Style	Solder
Approval Agency	cURus
Contact Tail Length	0.126 3.20mm
Number of Levels	1
Contact Mating Finish	Tin
Number of Decks	1
Current - UL	18.5A
Voltage - IEC	400V
Number of Ways	4
Safety Approval	CUL; EAC; UL
Header Orientation	Vertical
Hole Diameter	1.3 mm
Fastening Method	PLUG-IN
Material Flammability Rating	UL94 V-0
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1146380000 Product Details

1146380000 Overview

This device has a Through Hole mounting type.The product is packaged in a Bulk case.Among the products in the Omnimate SL Series, it is one of the most popular.This device operates at a temperature of -50°C~100°C.Other Header, Male Pins, Shrouded (2 Side) products share lots of benefits with this part.
