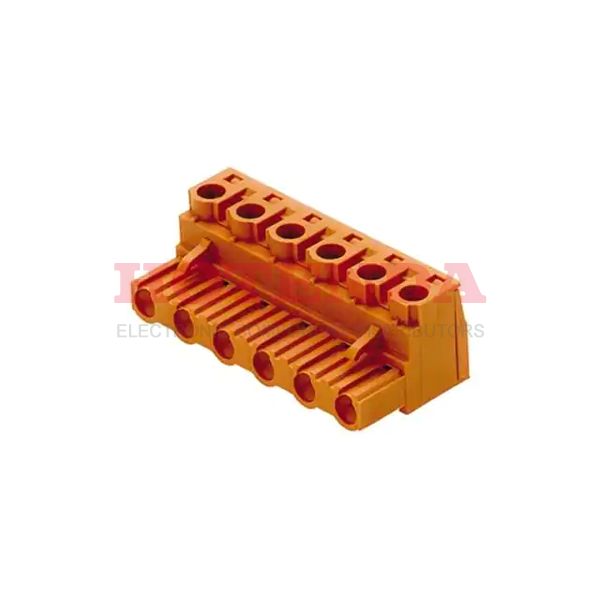

Name: 1628000000
Brand: Weidmüller
SKU: 1628000000
Price: 9.75000 USD
Availability: InStock

new

1628000000

Manufacturer part number:1628000000

Manufacturer:Weidmüller

Description:1628000000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1628000000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper Alloy
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-50°C~100°C
Packaging	Bulk
Published	2009
Series	Omnimate BL
JESD-609 Code	e3
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Termination	Screw
Type	Plug, Female Sockets
Color	Orange
Number of Rows	1
Voltage - Rated	300V
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.295 7.50mm
Total Number of Contacts	10
Orientation	Right Angle
Insulation Height	0.598 15.19mm
Current Rating	18.5A
Termination Style	Screw - Clamping Yoke (Tension Sleeve)
Approval Agency	CSA, UR
UL Flammability Code	94V-0
Voltage	300V
Number of Levels	1
Current	10A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	12 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	12-26 AWG
Current - UL	15A
Voltage - IEC	800V
Torque - Screw	0.4-0.5 Nm (3.5-4.4 Lb-In)
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Number of Positions Per Level	10
Screw Size	M2.5
Stripping Length	7mm
Height	15.2mm
Length	75mm
Width	20mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1628000000 Product Details

1628000000 Overview

Free Hanging (In-Line) is the mounting type of the device.This product is packaged in a case marked Bulk.It's from the Omnimate BL Series.This feature makes it more powerful in a number of ways due to its Retention Latches (Non-Wire Side) feature.Mounted by Cable, Free Hanging.In this case, the device runs at -50°C~100°C Operating Temperature.There are a number of benefits that this part has in common with other Plug, Female Sockets products.
