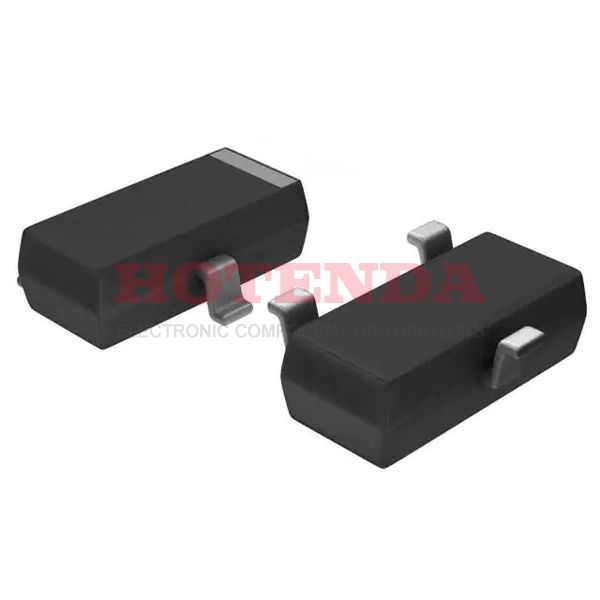

Name: SI2309DS-T1-E3
Brand: Vishay Siliconix
SKU: SI2309DS-T1-E3
Availability: InStock

new-10%

SI2309DS-T1-E3

Manufacturer part number:SI2309DS-T1-E3

Manufacturer:Vishay Siliconix

Description:MOSFET P-CH 60V 1.25A SOT23-3

Case Package:SOT-23

Datasheet:SI2309DS-T1-E3 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	TO-236-3, SC-59, SOT-23-3
Number of Pins	3
Supplier Device Package	SOT-23-3 (TO-236)
Weight	1.437803g
Operating Temperature	-55°C~150°C TJ
Packaging	Tape & Reel (TR)
Published	2008
Series	TrenchFET®
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Resistance	340mOhm
Max Operating Temperature	150°C
Min Operating Temperature	-55°C
Technology	MOSFET (Metal Oxide)
Number of Elements	1
Number of Channels	1
Voltage	60V
Power Dissipation-Max	1.25W Ta
Element Configuration	Single
Current	12A
Power Dissipation	1.25W
Turn On Delay Time	10.5 ns
FET Type	P-Channel
Rds On (Max) @ Id, Vgs	340mOhm @ 1.25A, 10V
Vgs(th) (Max) @ Id	1V @ 250μA (Min)
Gate Charge (Qg) (Max) @ Vgs	12nC @ 10V
Rise Time	11.5ns
Drain to Source Voltage (Vdss)	60V
Drive Voltage (Max Rds On,Min Rds On)	4.5V 10V
Vgs (Max)	±20V
Fall Time (Typ)	11.5 ns
Turn-Off Delay Time	15.5 ns
Continuous Drain Current (ID)	-1.25A
Gate to Source Voltage (Vgs)	20V
Drain to Source Breakdown Voltage	-60V
Drain to Source Resistance	340mOhm
Rds On Max	340 mΩ
Height	1.02mm
Length	3.04mm
Width	1.4mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

About SI2309DS-T1-E3

The SI2309DS-T1-E3 from Vishay Siliconix is a high-performance microcontroller designed for a wide range of embedded applications. This component features MOSFET P-CH 60V 1.25A SOT23-3.

Key Features

Advanced AVR architecture for efficient processing
Wide operating temperature range: -40°C to 85°C
Low power consumption for energy-efficient applications
Comprehensive peripheral set including SPI, UART, and USART interfaces

Applications

This microcontroller is ideal for various applications including:

Industrial control systems
Consumer electronics
Automotive systems
IoT devices
Medical equipment

Technical Support

Hotenda provides comprehensive technical support for the SI2309DS-T1-E3, including datasheets, application notes, and design resources. Our team of engineers is available to assist with your design challenges.
