ZMY5V1-GS18

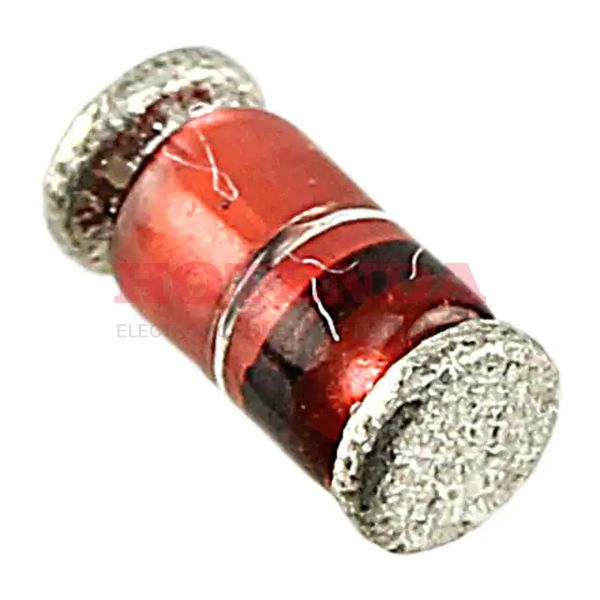

  • ZMY5V1-GS18 - ZENER DIODE 5Ohm ±5% 5.1V 500nA @ 700mV 175°C 1W 2 Terminations DO-213AB, MELF (Glass)
  • ZMY5V1-GS18 - ZENER DIODE 5Ohm ±5% 5.1V 500nA @ 700mV 175°C 1W 2 Terminations DO-213AB, MELF (Glass)

ZMY5V1-GS18

ZMY5V1-GS18

Vishay Semiconductor Diodes Division

ZENER DIODE 5Ohm ±5% 5.1V 500nA @ 700mV 175°C 1W 2 Terminations DO-213AB, MELF (Glass)

SOT-23

ZMY5V1-GS18 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 12 Weeks
Mount Surface Mount
Mounting Type Surface Mount
Package / Case DO-213AB, MELF (Glass)
Number of Pins 2
Diode Element Material SILICON
Operating Temperature175°C
PackagingTape & Reel (TR)
Series Automotive, AEC-Q101
Published 2016
Tolerance ±5%
JESD-609 Code e2
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
HTS Code8541.10.00.50
Max Power Dissipation1W
Terminal Position END
Terminal FormWRAP AROUND
Pin Count2
Number of Elements 1
Polarity UNIDIRECTIONAL
Impedance5Ohm
Element ConfigurationSingle
Diode Type ZENER DIODE
Current - Reverse Leakage @ Vr 500nA @ 700mV
Power Dissipation1W
Case Connection ISOLATED
Impedance-Max 5Ohm
Test Current 100mA
Reference Voltage5.1V
Zener Voltage 5.1V
Voltage Tol-Max 5.88%
Voltage Tolerance6%
Zener Current150mA
Radiation HardeningNo
RoHS StatusROHS3 Compliant
In-Stock:19197 items

Pricing & Ordering

QuantityUnit PriceExt. Price

ZMY5V1-GS18 Product Details

ZMY5V1-GS18 Overview


The reverse leakage current needed to power this electric device is 500nA @ 700mV.Zener single diode is a maximum voltage (Tol) that can be supplied at 5.88%.A zener current of 150mA makes it highly flexible in terms of design.

ZMY5V1-GS18 Features


reverse leakage current of 500nA @ 700mV
500nA @ 700mV is the maximum voltage (Tol)
the zener current of 150mA


ZMY5V1-GS18 Applications


There are a lot of Vishay Semiconductor Diodes Division
ZMY5V1-GS18 applications of zener single diodes.
