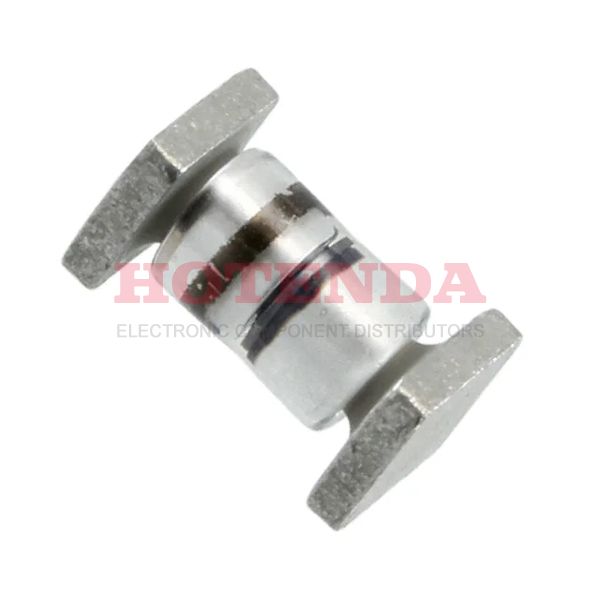

Name: JANTX1N4466US
Brand: Microsemi Corporation
SKU: JANTX1N4466US
Price: 13.80000 USD
Availability: InStock

new

JANTX1N4466US

Manufacturer part number:JANTX1N4466US

Manufacturer:Microsemi Corporation

Description:ZENER DIODE 6Ohm ±5% 11V 300nA @ 8.8V -65°C~175°C 1.5W 2 Terminations SQ-MELF, A

Case Package:SOT-23

Datasheet:JANTX1N4466US Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	IN PRODUCTION (Last Updated: 3 weeks ago)
Factory Lead Time	14 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	SQ-MELF, A
Number of Pins	2
Diode Element Material	SILICON
Operating Temperature	-65°C~175°C
Packaging	Bulk
Series	Military, MIL-PRF-19500/406
Published	1999
Tolerance	±5%
JESD-609 Code	e0
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
ECCN Code	EAR99
Terminal Finish	TIN LEAD OVER COPPER
Additional Feature	METALLURGICALLY BONDED
HTS Code	8541.10.00.50
Max Power Dissipation	1.5W
Terminal Position	END
Terminal Form	WRAP AROUND
Peak Reflow Temperature (Cel)	225
Time@Peak Reflow Temperature-Max (s)	20
Pin Count	2
Reference Standard	MIL-19500
Number of Elements	1
Polarity	UNIDIRECTIONAL
Element Configuration	Single
Diode Type	ZENER DIODE
Current - Reverse Leakage @ Vr	300nA @ 8.8V
Power Dissipation	1.5W
Voltage - Forward (Vf) (Max) @ If	1V @ 200mA
Case Connection	ISOLATED
Max Reverse Leakage Current	300nA
Impedance-Max	6Ohm
Test Current	23mA
Reference Voltage	11V
Zener Voltage	11V
Voltage Tol-Max	1%
Voltage Tolerance	5%
Radiation Hardening	No
RoHS Status	Non-RoHS Compliant

JANTX1N4466US Product Details

JANTX1N4466US Overview

An electrical device like this requires a reverse leakage current of 300nA @ 8.8V.A maximum voltage (Tol) can be supplied if 1% is set.During reverse leakage, the maximum current reaches 300nA.For operation, diode reaches 1V @ 200mA at the maximum voltage - Forward (Vf).
