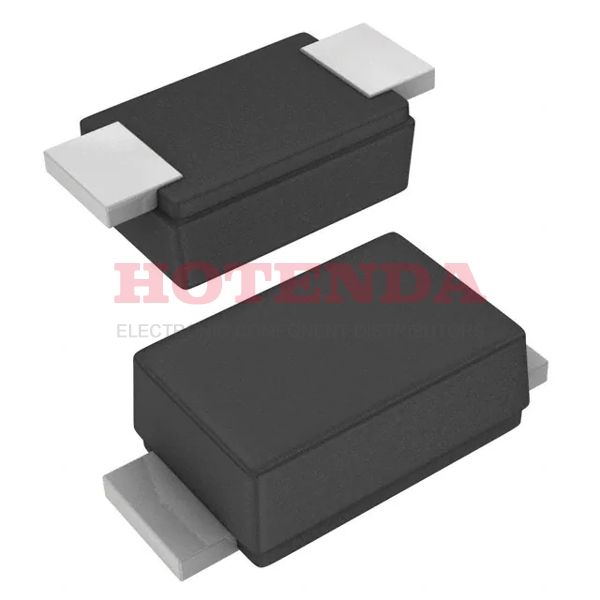

S07D-M-08

Name: S07D-M-08
Brand: Vishay Semiconductor Diodes Division
SKU: S07D-M-08
Price: 0.10000 USD
Availability: InStock

new-10%

S07D-M-08

Manufacturer part number:S07D-M-08

Manufacturer:Vishay Semiconductor Diodes Division

Description:S07D-M-08 datasheet pdf and Diodes - Rectifiers - Single product details from Vishay Semiconductor Diodes Division stock available on our website

Case Package:SOT-23

Datasheet:S07D-M-08 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	DO-219AB
Number of Pins	2
Diode Element Material	SILICON
Packaging	Tape & Reel (TR)
Published	2015
Series	Automotive, AEC-Q101
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
Max Operating Temperature	175°C
Min Operating Temperature	-65°C
HTS Code	8541.10.00.80
Subcategory	Rectifier Diodes
Terminal Position	DUAL
Terminal Form	FLAT
Peak Reflow Temperature (Cel)	260
Reach Compliance Code	unknown
[email protected] Reflow Temperature-Max (s)	40
Pin Count	2
Qualification Status	Not Qualified
Number of Elements	1
Element Configuration	Single
Speed	Standard Recovery >500ns, > 200mA (Io)
Diode Type	Standard
Current - Reverse Leakage @ Vr	10μA @ 200V
Voltage - Forward (Vf) (Max) @ If	1.1V @ 1A
Operating Temperature - Junction	-55°C~150°C
Output Current-Max	0.7A
Forward Voltage	1.1V
Max Reverse Voltage (DC)	200V
Average Rectified Current	700mA
Reverse Recovery Time	1.8 μs
Capacitance @ Vr, F	4pF @ 4V 1MHz
Peak Non-Repetitive Surge Current	25A
RoHS Status	ROHS3 Compliant
