BZX384C8V2-E3-18

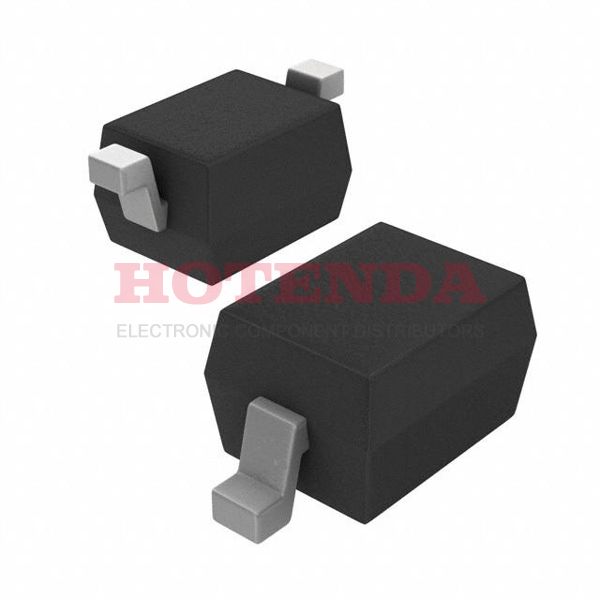

  • BZX384C8V2-E3-18 - ZENER DIODE 15Ohm ±5% 8.2V 700nA @ 5V -55°C~150°C 200mW 2 Terminations SC-76, SOD-323
  • BZX384C8V2-E3-18 - ZENER DIODE 15Ohm ±5% 8.2V 700nA @ 5V -55°C~150°C 200mW 2 Terminations SC-76, SOD-323

BZX384C8V2-E3-18

BZX384C8V2-E3-18

Vishay Semiconductor Diodes Division

ZENER DIODE 15Ohm ±5% 8.2V 700nA @ 5V -55°C~150°C 200mW 2 Terminations SC-76, SOD-323

SOT-23

BZX384C8V2-E3-18 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 12 Weeks
Contact PlatingTin
Mount Surface Mount
Mounting Type Surface Mount
Package / Case SC-76, SOD-323
Number of Pins 2
Weight 4.309128mg
Diode Element Material SILICON
Operating Temperature-55°C~150°C
PackagingTape & Reel (TR)
Series Automotive, AEC-Q101
Published 2016
Tolerance ±5%
JESD-609 Code e3
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
HTS Code8541.10.00.50
Max Power Dissipation200mW
Terminal Position DUAL
Terminal FormGULL WING
Peak Reflow Temperature (Cel) 260
Time@Peak Reflow Temperature-Max (s) 10
Pin Count2
Number of Elements 1
Polarity UNIDIRECTIONAL
Impedance15Ohm
Element ConfigurationSingle
Diode Type ZENER DIODE
Current - Reverse Leakage @ Vr 700nA @ 5V
Power Dissipation200mW
Max Reverse Leakage Current 700nA
Impedance-Max 15Ohm
Test Current 5mA
Reference Voltage8.2V
Zener Voltage 8.2V
Voltage Tol-Max 5%
Voltage Tolerance5%
ESD Protection Yes
Radiation HardeningNo
RoHS StatusROHS3 Compliant
In-Stock:31804 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$0.240000$0.24
10$0.226415$2.26415
100$0.213599$21.3599
500$0.201509$100.7545
1000$0.190102$190.102

BZX384C8V2-E3-18 Product Details

BZX384C8V2-E3-18 Overview


An electrical device like this requires a reverse leakage current of 700nA @ 5V.A maximum voltage (Tol) can be supplied if 5% is set.During reverse leakage, the maximum current reaches 700nA.

BZX384C8V2-E3-18 Features


reverse leakage current of 700nA @ 5V
700nA @ 5V is the maximum voltage (Tol)
Reverse leakage current reaches 700nA


BZX384C8V2-E3-18 Applications


There are a lot of Vishay Semiconductor Diodes Division
BZX384C8V2-E3-18 applications of zener single diodes.
