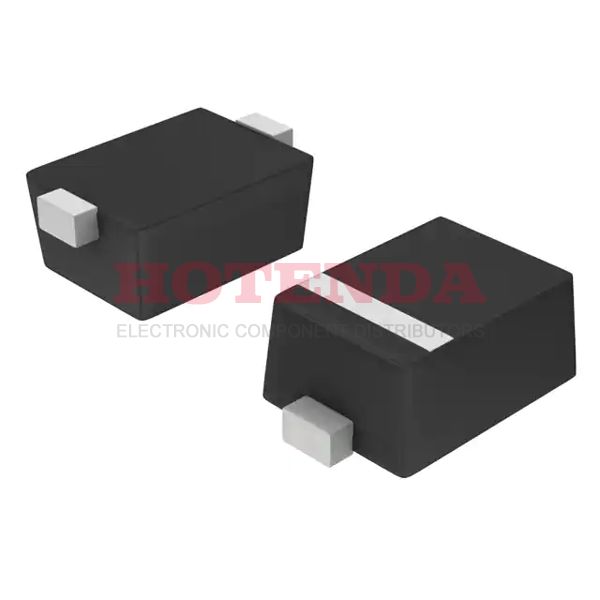

Manufacturer part number:NZ9F5V6ST5G

Manufacturer:ON Semiconductor

Description:ZENER DIODE 60Ohm ±2% 5.61V 1μA @ 2.5V -65°C~150°C 200mW 2 Terminations SOD-923

Case Package:SOT-23

Datasheet:NZ9F5V6ST5G Datasheet

RoHs Status:non-compliant

Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 6 hours ago)
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mounting Type	Surface Mount
Package / Case	SOD-923
Surface Mount	YES
Number of Pins	2
Diode Element Material	SILICON
Operating Temperature	-65°C~150°C
Packaging	Tape & Reel (TR)
Published	2008
Tolerance	±2%
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
ECCN Code	EAR99
HTS Code	8541.10.00.50
Max Power Dissipation	200mW
Terminal Position	DUAL
Terminal Form	FLAT
Pin Count	2
Number of Elements	1
Polarity	UNIDIRECTIONAL
Impedance	60Ohm
Element Configuration	Single
Diode Type	ZENER DIODE
Current - Reverse Leakage @ Vr	1μA @ 2.5V
Power Dissipation	200mW
Voltage - Forward (Vf) (Max) @ If	900mV @ 10mA
Max Reverse Leakage Current	1μA
Impedance-Max	60Ohm
Halogen Free	Halogen Free
Test Current	5mA
Reference Voltage	5.6V
Voltage - Zener (Nom) (Vz)	5.6V
Zener Voltage	5.61V
Voltage Tolerance	2%
ESD Protection	Yes
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free
