Name: UA78L09CLPR
Brand: Texas Instruments
SKU: UA78L09CLPR
Availability: InStock

new-10%

UA78L09CLPR

Manufacturer part number:UA78L09CLPR

Manufacturer:Texas Instruments

Description:1.27mm PMIC 3

Case Package:SOT-23

Datasheet:UA78L09CLPR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Surface Mount	NO
Number of Terminations	3
ECCN Code	EAR99
HTS Code	8542.39.00.01
Subcategory	Other Regulators
Packing Method	TAPE AND REEL
Technology	BIPOLAR
Terminal Position	BOTTOM
Terminal Form	WIRE
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Number of Functions	1
Terminal Pitch	1.27mm
Reach Compliance Code	not_compliant
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Pin Count	3
JESD-30 Code	O-PBCY-W3
Number of Outputs	1
Qualification Status	Not Qualified
Output Voltage 1	9V
Input Voltage (Min)	11.5V
Input Voltage (Max)	24V
Dropout Voltage1-Nom	1.7V
Output Voltage1-Max	9.9V
Output Voltage1-Min	8.1V
Regulator Type	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR
Voltage Tolerance-Max	10%
Output Current1-Max	0.1A
Operating Temperature TJ-Max	125°C
Input Voltage Absolute-Max	30V
Adjustability	FIXED
Load Regulation-Max(%)	0.09%
Line Regulation-Max (%/V)	0.225%
RoHS Status	Non-RoHS Compliant

UA78L09CLPR Product Details

UA78L09CLPR Overview

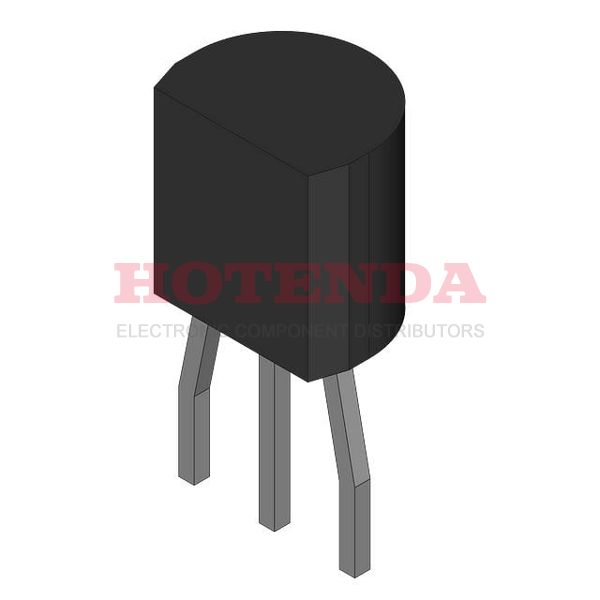

On the regulater IC chip, there are a total of 3 terminations. A total of 3 pins can be found on the board. In order to deliver prompt, sufficient and reliable performance, this regulator IC has 1 outputs in total. An example of such a component would be this Other Regulators component. This device is regulated with the FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR type of regulator. As you can see from the picture, the regulator IC is packed in a certain way.
