LP38693SD-ADJ Overview

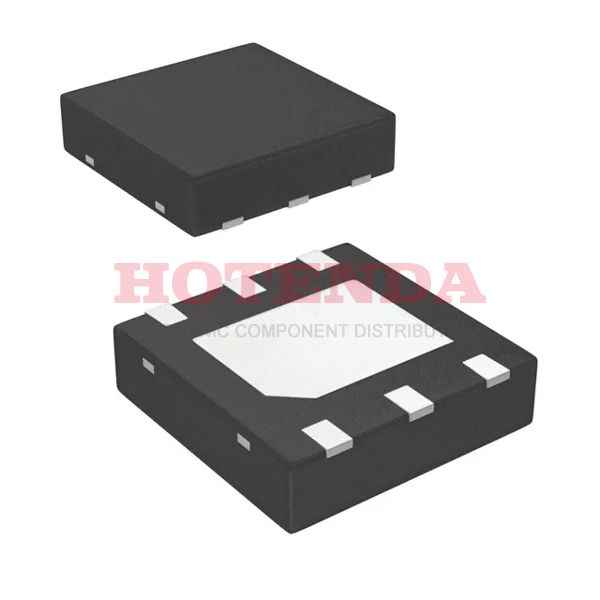

In a Tape & Reel (TR) case, the IC voltage regulator is delivered. A 6-WDFN Exposed Pad case contains the Liner IC. In total, there are 6 terminations on the gadget. This PMIC chip has an output type of Adjustable. In this electrical part, there are 1 regulators that are implemented. Voltage Regulated IC Surface Mount varies its operating temperature range. The IC Voltage Regulator's operating temperature is -40°C~125°C degrees. Currently, this regulator IC has an output function configured as Positive as its output function. There are 6 pins in total on this board. Featuring 1 outputs in total, this voltage regulator IC enables prompt, sufficient performance regardless of the application. There is a 10 volt dropout voltage on this transistor. A 6-pin is present on the chip. It is LP38693 for this voltage regulator IC, just for your information. A packing method for the IC regulator is TAPE AND REEL, which means it is packed in a certain way. A maximum output current of 500mA is required to meet the operation requirements. It operates in the 100μA Quiescent Current state. In fact, it is voltage regulator IC of the Automotive, AEC-Q100 Series of cameras.
LP38693SD-ADJ Features
250mV dropout voltage
TAPE AND REEL method of packing
LP38693SD-ADJ Applications
There are a lot of Texas Instruments
LP38693SD-ADJ Linear Voltage Regulators applications.
- Portable telephone
- Electronic notebook
- Camera
- Video equipment
- CPU power supply
- Switching regulator
- Multiple-power supply system
- Digital audio player
- Digital TV
- Smartcard
