Name: TRS208IDWG4
Brand: Texas Instruments
SKU: TRS208IDWG4
Availability: InStock

Technical Specifications

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	24-SOIC (0.295, 7.50mm Width)
Number of Pins	24
Weight	624.398247mg
Operating Temperature	-40°C~85°C
Packaging	Tube
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	24
ECCN Code	EAR99
Type	Transceiver
Subcategory	Line Driver or Receivers
Voltage - Supply	4.5V~5.5V
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Number of Functions	4
Supply Voltage	5V
Terminal Pitch	1.27mm
Reach Compliance Code	unknown
[email protected] Reflow Temperature-Max (s)	NOT SPECIFIED
Base Part Number	TRS208
Pin Count	24
Qualification Status	Not Qualified
Operating Supply Voltage	5.5V
Power Supplies	5V
Nominal Supply Current	20mA
Data Rate	120Kbps
Differential Output	NO
Protocol	RS232
Input Characteristics	SCHMITT TRIGGER
Number of Drivers/Receivers	4/4
Receiver Number of Bits	4
Duplex	Full
Receiver Hysteresis	500mV
Interface Standard	EIA-232-F; TIA-232-F; V.28
Number of Drivers	4
Receive Delay-Max	10000 ns
Output Low Current-Max	0.0016A
Out Swing-Min	10 V
High Level Input Current-Max	0.0002A
Height Seated (Max)	2.65mm
Width	7.5mm
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

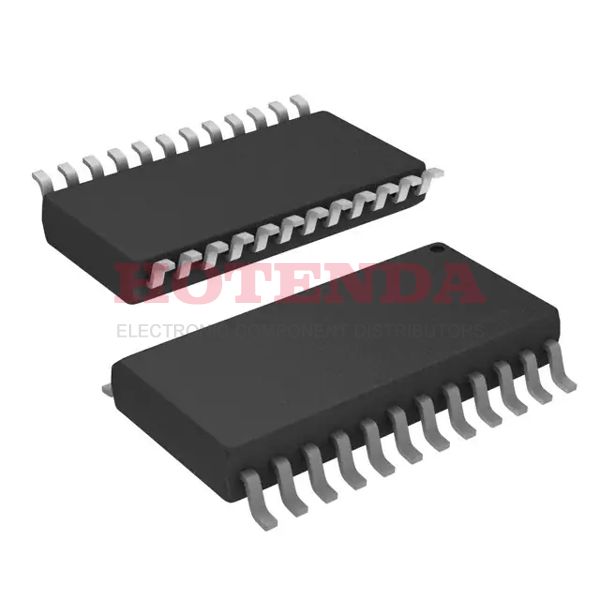

TRS208IDWG4 Product Details

TRS208IDWG4 Overview

Driver ICs with enhanced 24-SOIC (0.295, 7.50mm Width) packages are excellent for driving LEDs with common characteristics.The Tube package houses this receiver.The Transceiver can transceiver technology has enabled this part to power many solutions for a variety of uses.On any Surface Mount-type PCB or development board, this wide receiver can be placed.It takes 4.5V~5.5V from the power supply to run this differential driver.At any one time, this electronic part can have up to 4/4 eligible receivers/drivers.IC receiver likes this one are designed for use in applications where operating temperatures are -40°C~85°C.Driver ICs with a supply voltage range of 5V can operate efficiently.Integrated into this wide receiver are 24 terminations that are used for driving and receiving signals from data.As a standard package, this transceiver comes with a 24-pin layout that follows the market standard.You can search with TRS208 to get more variants of this part, since it identifies the product type, temperature, package, etc.This is a 24-pin driver IC with enhanced power dissipation control.Through optical transceiver downsizing and high-density Surface Mount mounting technologies, its package size is reduced dramatically.There is typically a resolution of 4 bits specified with this receiver.There is a 5.5V input voltage supply that can be used to operate this transceiver module.A Line Driver or Receivers subcategory can be assigned to this rf transceiver module.An 8-pin power supply is provided by this driver IC, which allows it to operate from an 5V-pin power supply.The integrator circuit is embedded with 4 drivers.
