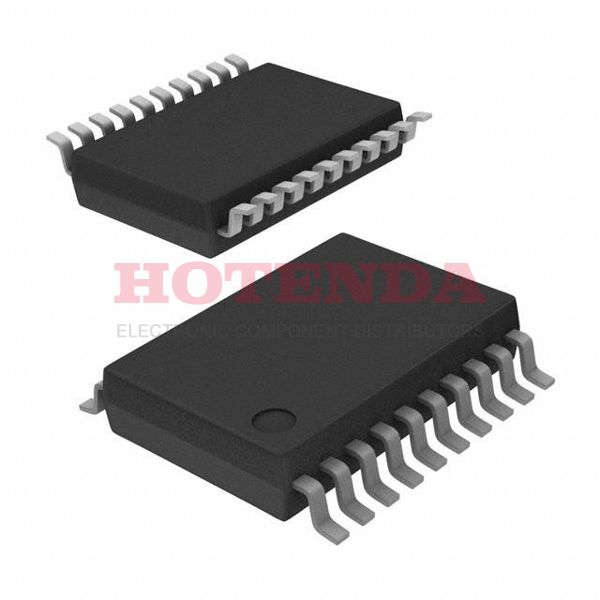

Name: TRS3222IDBG4
Brand: Texas Instruments
SKU: TRS3222IDBG4
Availability: InStock

Technical Specifications

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	20-SSOP (0.209, 5.30mm Width)
Number of Pins	20
Weight	156.687814mg
Operating Temperature	-40°C~85°C
Packaging	Tube
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	20
ECCN Code	EAR99
Type	Transceiver
Additional Feature	ALSO OPERATES AT 5V
Subcategory	Line Driver or Receivers
Voltage - Supply	3V~5.5V
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Number of Functions	2
Supply Voltage	3.3V
Terminal Pitch	0.65mm
Reach Compliance Code	unknown
[email protected] Reflow Temperature-Max (s)	NOT SPECIFIED
Base Part Number	TRS3222
Pin Count	20
Qualification Status	Not Qualified
Operating Supply Voltage	5.5V
Power Supplies	3.3/5V
Nominal Supply Current	1mA
Data Rate	250kbps
Differential Output	NO
Protocol	RS232
Input Characteristics	SCHMITT TRIGGER
Number of Drivers/Receivers	2/2
Receiver Number of Bits	2
Duplex	Full
Receiver Hysteresis	300mV
Number of Drivers	2
Output Low Current-Max	0.0016A
Out Swing-Min	10 V
High Level Input Current-Max	0.000001A
Width	5.3mm
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

TRS3222IDBG4 Product Details

TRS3222IDBG4 Overview

LED drivers with the enhanced 20-SSOP (0.209, 5.30mm Width) package will be able to drive a variety of common LEDs with ease.Tube package is used for this receiver.Since this part is a Transceiver can transceiver, a number of solutions have been able to utiliTransceivere it for various purposes.The wide receiver can be mounted on any Surface Mount-type PCB or development board.This differential driver consumes 3V~5.5V for its power supplyThis electronic part can have?up to 2/2 eligible receivers/drivers on the field at once.?In most applications, this ic receiver is used in environments where -40°C~85°C is the operating temperature.There is a voltage range of 3.3V for this line driver ic, so it can operate efficiently.20 terminations are integrated into this wide receiver for driving and receiving signals from data.A package consisting of 20 market standard pinouts is provided with this integrated circuit.For more variants of this part, try searching with the base part number TRS3222, which indicates the product type, temperature, package, etc.It is a 20-pin driver IC with enhanced power dissipation controls.Through optical transceiver downsizing and high-density Surface Mount mounting technologies, its package size is reduced dramatically.There are typically 2 bits of resolution specified in the specifications of this receiver.This transceiver module is designed to operate from an input voltage supply of 5.5V.A Line Driver or Receivers subcategory can be assigned to this rf transceiver module.This driver IC is designed to operate from a 3.3/5V power supply.On the integrator circuit, there are 2 drivers embedded.With the ALSO OPERATES AT 5V function, this optical transceiver module improves accuracy and stability of signal management overall.
