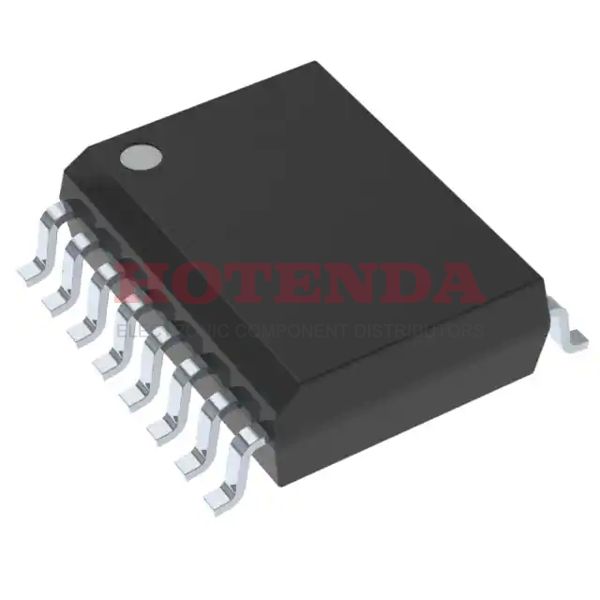

Name: TRS202CDW
Brand: Texas Instruments
SKU: TRS202CDW
Availability: InStock

Technical Specifications

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	16-SOIC (0.295, 7.50mm Width)
Number of Pins	16
Weight	420.395078mg
Operating Temperature	0°C~70°C
Packaging	Tube
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	16
ECCN Code	EAR99
Type	Transceiver
Subcategory	Line Driver or Receivers
Voltage - Supply	4.5V~5.5V
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Number of Functions	2
Supply Voltage	5V
[email protected] Reflow Temperature-Max (s)	NOT SPECIFIED
Base Part Number	TRS202
Pin Count	16
Qualification Status	Not Qualified
Operating Supply Voltage	5.5V
Power Supplies	5V
Nominal Supply Current	15mA
Data Rate	120Kbps
Differential Output	NO
Protocol	RS232
Input Characteristics	SCHMITT TRIGGER
Number of Drivers/Receivers	2/2
Receiver Number of Bits	2
Duplex	Full
Receiver Hysteresis	500mV
Number of Drivers	2
Receive Delay-Max	10000 ns
Out Swing-Min	10 V
Length	10.3mm
Width	7.5mm
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

TRS202CDW Product Details

TRS202CDW Overview

This LED driver IC features an enhanced 16-SOIC (0.295, 7.50mm Width) package for driving common LEDs.In this package, the receiver is mounted in the Tube format.As a Transceiver can transceiver, this part has enabled many applications to be served.This wide receiver can be placed on any Surface Mount-type PCB or development board.In terms of power supply, this differential driver utilizes 4.5V~5.5V.It is possible to have up to 2/2 receivers/drivers in use simultaneously with this electronic part.The operating temperature of this ic receiver is 0°C~70°C. It is primarily designed for applications with low temperatures.An output voltage range of 5V is sufficient to run this line driver ic efficiently.16 terminations are integrated into this wide receiver for driving and receiving signals from data.In this package, you will find 16 market-standard pinouts for this transceiver.Since the base part number TRS202 uniquely identifies the product type, temperature, package, etc., you can use it to find more variations.An enhanced power dissipation control driver IC featuring 16 pins.Its package size is drastically reduced by downsizing ICs and utilizing high-density Surface Mount mounting techniques.There is usually a 2-bit resolution specified for this receiver when it is used.There is a 5.5V input voltage supply that can be used to operate this transceiver module.A rf transceiver module named Line Driver or Receivers belongs to this subcategory.IC5V is a high performance driver IC designed to work with a 5V power supply.Embedded 2 drivers are included on the integrator circuit.
