Name: TPS7A0331PDQNR
Brand: Texas Instruments
SKU: TPS7A0331PDQNR
Price: 0.94000 USD
Availability: InStock

new-10%

TPS7A0331PDQNR

Manufacturer part number:TPS7A0331PDQNR

Manufacturer:Texas Instruments

Description:0.65mm PMIC

Case Package:SOT-23

Datasheet:TPS7A0331PDQNR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Surface Mount	YES
JESD-609 Code	e4
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	4
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Packing Method	TR
Terminal Position	DUAL
Terminal Form	NO LEAD
Number of Functions	1
Terminal Pitch	0.65mm
JESD-30 Code	S-PDSO-N4
Number of Outputs	1
Operating Temperature (Max)	125°C
Operating Temperature (Min)	-40°C
Output Voltage 1	3.1V
Input Voltage (Min)	3.6V
Input Voltage (Max)	6V
Dropout Voltage1-Nom	0.5V
Output Voltage1-Max	3.1465V
Output Voltage1-Min	3.0535V
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Voltage Tolerance-Max	1.5%
Output Current1-Max	0.2A
Dropout Voltage1-Max	0.36V
Operating Temperature TJ-Max	125°C
Input Voltage Absolute-Max	6.5V
Adjustability	FIXED
Operating Temperature TJ-Min	-40°C
Length	3mm
Height Seated (Max)	0.4mm
Width	3mm
RoHS Status	ROHS3 Compliant

TPS7A0331PDQNR Product Details

TPS7A0331PDQNR Overview

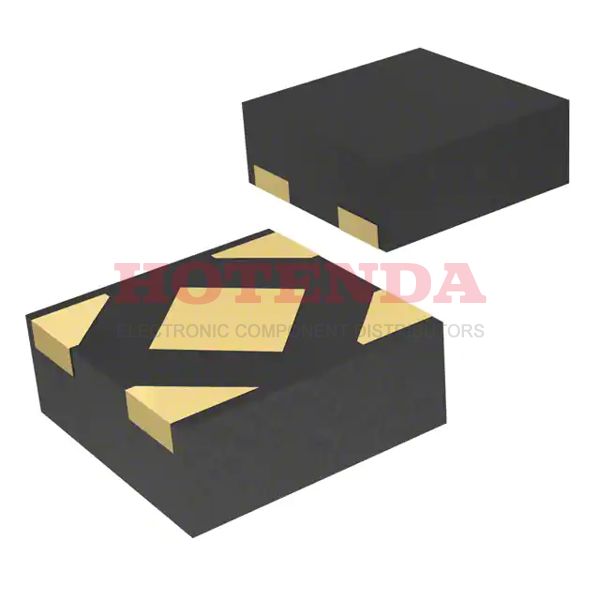

On the regulater IC chip, there are a total of 4 terminations. In order to deliver prompt, sufficient and reliable performance, this regulator IC has 1 outputs in total. This device is regulated with the FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR type of regulator. As you can see from the picture, the regulator IC is packed in a certain way.
