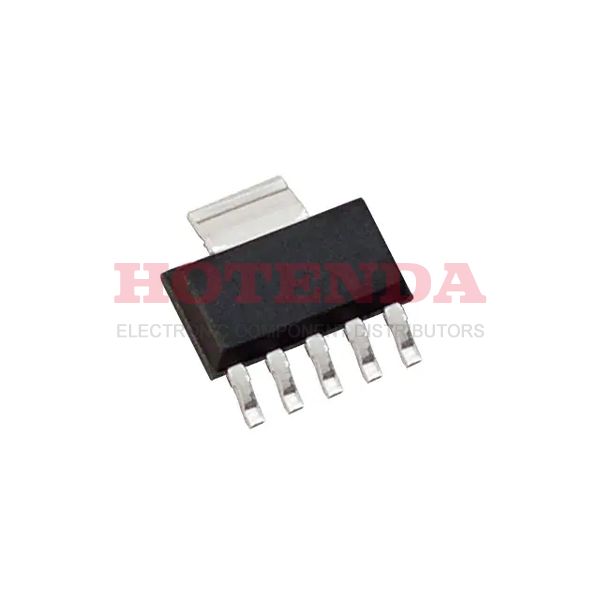

Name: TPS73218DCQG4
Brand: Texas Instruments
SKU: TPS73218DCQG4
Availability: InStock

new-10%

TPS73218DCQG4

Manufacturer part number:TPS73218DCQG4

Manufacturer:Texas Instruments

Description:Enable Fixed TPS73218 PMIC 6 SOT-223-6

Case Package:SOT-23

Datasheet:TPS73218DCQG4 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	SOT-223-6
Surface Mount	YES
Number of Pins	6
Operating Temperature	-40°C~125°C
Packaging	Tube
Pbfree Code	no
Part Status	Discontinued
Moisture Sensitivity Level (MSL)	2 (1 Year)
Number of Terminations	6
ECCN Code	EAR99
Max Power Dissipation	2.22W
Terminal Position	DUAL
Terminal Form	GULL WING
Number of Functions	1
Base Part Number	TPS73218
Pin Count	6
Current - Supply (Max)	950μA
Number of Outputs	1
Voltage - Input (Max)	5.5V
Output Voltage	1.8V
Output Type	Fixed
Max Output Current	250mA
Output Configuration	Positive
Power Dissipation	2.22W
Quiescent Current	400μA
Control Features	Enable
Accuracy	1 %
Max Output Voltage	1.8V
Output Voltage 1	1.8V
Number of Regulators	1
Min Input Voltage	1.7V
Protection Features	Over Current, Over Temperature, Short Circuit, Reverse Polarity
Current - Quiescent (Iq)	550μA
Voltage Dropout (Max)	0.15V @ 250mA
PSRR	58dB ~ 37dB (100Hz ~ 10kHz)
Dropout Voltage	40mV
Dropout Voltage1-Nom	0.04V
Min Output Voltage	1.8V
Voltage Tolerance-Max	1%
Min Current Limit	250mA
Input Bias Current	400μA
Output Voltage Accuracy	0.5 %
Height	1.6mm
Length	6.5mm
Width	3.5mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Contains Lead

TPS73218DCQG4 Product Details

TPS73218DCQG4 Overview

Deliveries are in Tube cases. The package is in a SOT-223-6 case. Basically, the voltage regulator chip is made up of 6 terminations. In this case, Fixed represents the output type of the Voltage Regulated IC. This part implements 1 regulator ICs, which can be found in the following table. Regulator IC varies the range of Surface Mount operating temperatures. The Voltage Regulated IC operates at a temperature of -40°C~125°C degrees, which is its operating temperature. It is configured for output function Positive on this regulator. The total number of pins in the regulator is 6. This IC regulator has a total of 1 outputs, which ensures a rapid, adequate performance when in use. There is a voltage dropout of 10 volts for this IC regulator. Several pins on the chip are 6-shaped. As an FYI, this IC voltage regulator has the basic part number TPS73218. The maximal output current reaches 250mA to meet the operating requirements. It operates in the 400μA Quiescent Current state.
