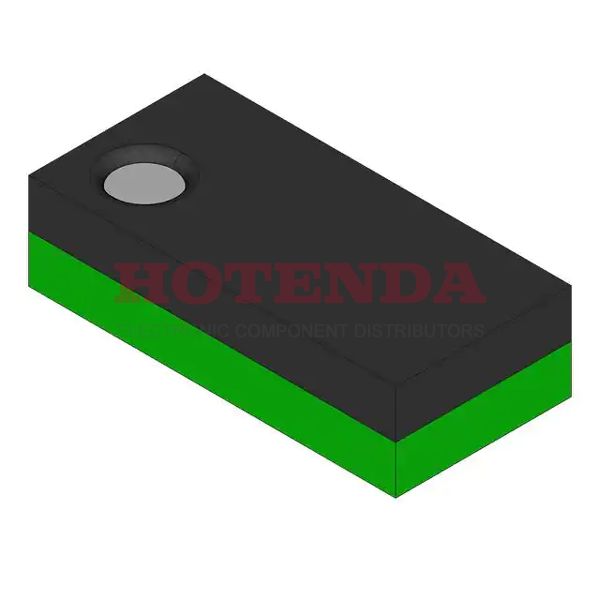

Name: LP3986BL-3131
Brand: Texas Instruments
SKU: LP3986BL-3131
Availability: InStock

Technical Specifications

Parameter Name	Value
Type	Parameter
Surface Mount	YES
Packaging	Cut Tape
JESD-609 Code	e0
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	8
ECCN Code	EAR99
Terminal Finish	Tin/Lead (Sn63Pb37)
Subcategory	Other Regulators
Packing Method	TAPE AND REEL
Technology	CMOS
Terminal Position	BOTTOM
Terminal Form	BALL
Peak Reflow Temperature (Cel)	260
Number of Functions	1
Terminal Pitch	0.5mm
Time@Peak Reflow Temperature-Max (s)	40
JESD-30 Code	S-PBGA-B8
Number of Outputs	2
Qualification Status	Not Qualified
Quiescent Current	75μA
Voltage - Output	3.1V
Output Voltage 1	3.1V
Input Voltage (Max)	6V
Dropout Voltage1-Nom	0.06V
Regulator Type	FIXED POSITIVE MULTIPLE OUTPUT LDO REGULATOR
Voltage Tolerance-Max	3%
Output Current1-Max	0.15A
Dropout Voltage1-Max	0.1V
Input Voltage Absolute-Max	6.5V
Adjustability	FIXED
Output Voltage 2	3.1V
Line Regulation-Max (%/V)	0.0095%
Operating Temperature TJ-Min	-40°C
Output Current2-Max	0.15A
Dropout Voltage2-Max	0.1V
Length	1.55mm
Height Seated (Max)	0.995mm
Width	1.55mm
RoHS Status	RoHS Compliant
Lead Free	Contains Lead

LP3986BL-3131 Product Details

LP3986BL-3131 Description

A 150 mA dual low dropout regulator with high board space and performance demands for mobile and wireless applications is the LP3986BL-3131. The smallest ceramic output capacitor on the board, the LP3986, is stable and has a 1 F/30% ceramic output. The LP3986 is designed to produce extremely low dropout and ultra-low noise regardless of load current, voltage, or low quiescent current in battery-powered devices.
