TPS71750DSET Overview

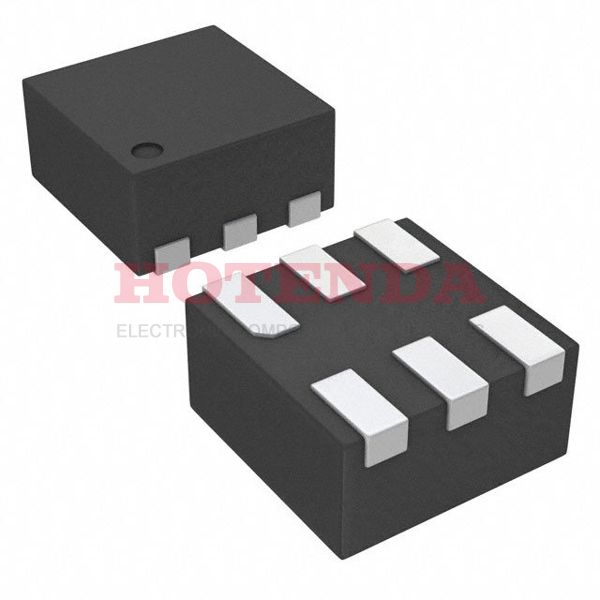

In a Tape & Reel (TR) case, the IC voltage regulator is delivered. A 6-WFDFN case contains the Liner IC. In total, there are 6 terminations on the gadget. This PMIC chip has an output type of Fixed. In this electrical part, there are 1 regulators that are implemented. Voltage Regulated IC Surface Mount varies its operating temperature range. The IC Voltage Regulator's operating temperature is -40°C~125°C degrees. Currently, this regulator IC has an output function configured as Positive as its output function. The chip on which this is based has an overall count of 6 pins. Featuring 1 outputs in total, this voltage regulator IC enables prompt, sufficient performance regardless of the application. There is a 10 volt dropout voltage on this transistor. A 6-pin is present on the chip. It is TPS71750 for this voltage regulator IC, just for your information. A packing method for the IC regulator is TR, which means it is packed in a certain way. A maximum output current of 150mA is required to meet the operation requirements. It operates in the 50μA Quiescent Current state. The top supply voltage is 6.5V volts.
TPS71750DSET Features
170mV dropout voltage
TR method of packing
TPS71750DSET Applications
There are a lot of Texas Instruments
TPS71750DSET Linear Voltage Regulators applications.
- Portable telephone
- Electronic notebook
- Camera
- Video equipment
- CPU power supply
- Switching regulator
- Multiple-power supply system
- Digital audio player
- Digital TV
- Smartcard
