Name: MIC5208-3.3YMM
Brand: Microchip Technology
SKU: MIC5208-3.3YMM
Price: 2.24000 USD
Availability: InStock

new-10%

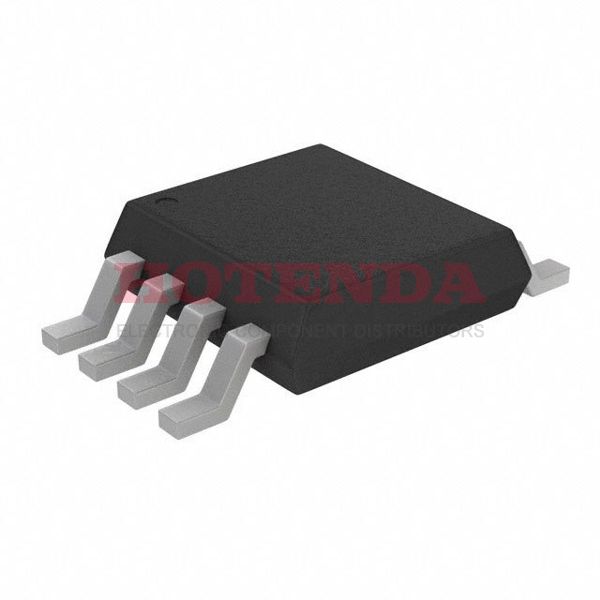

MIC5208-3.3YMM

Manufacturer part number:MIC5208-3.3YMM

Manufacturer:Microchip Technology

Description:Enable Fixed 0.65mm MIC5208 PMIC - Series 8 8-TSSOP, 8-MSOP (0.118, 3.00mm Width)

Case Package:SOT-23

Datasheet:MIC5208-3.3YMM Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	8-TSSOP, 8-MSOP (0.118, 3.00mm Width)
Surface Mount	YES
Number of Pins	8
Supplier Device Package	8-MSOP
Number of Terminals	8
Supplier Package	MSOP
Input Voltage Range	2.5, 16 V
Maximum Input Voltage	16 V
Mounting	Surface Mount
Package	Tube
Base Product Number	MIC5208
Mfr	Microchip Technology
Product Status	Active
Manufacturer	Microchip
Brand	Microchip Technology
RoHS	Details
Package Shape	RECTANGULAR
Operating Temperature	-40°C~125°C
Packaging	Tube
Series	-
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	8
Subcategory	PMIC - Power Management ICs
Terminal Position	DUAL
Terminal Form	GULL WING
Number of Functions	1
Terminal Pitch	0.65mm
Reach Compliance Code	compliant
Base Part Number	MIC5208
Pin Count	8
JESD-30 Code	R-PDSO-G8
Function	LDO
Current - Supply (Max)	1.2mA
Number of Outputs	2
Voltage - Input (Max)	16V
Output Voltage	3.3V
Output Type	Fixed
Polarity	Positive
Output Configuration	Positive
Output Current	0.05 A
Current - Output	50mA, 50mA
Control Features	Enable
Output Voltage 1	3.3V
Input Voltage (Min)	4.3V
Voltage - Output (Min/Fixed)	3.3V 3.3V
Number of Regulators	2
Protection Features	Over Current, Over Temperature, Reverse Polarity
Current - Quiescent (Iq)	750μA
Voltage Dropout (Max)	0.5V @ 50mA 0.5V @ 50mA
PSRR	-
Seated Height-Max	1.09 mm
Dropout Voltage	250mV
Product Type	LDO Voltage Regulators
Output Voltage1-Max	3.432 V
Output Voltage1-Min	3.168 V
Regulator Type	FIXED POSITIVE MULTIPLE OUTPUT LDO REGULATOR
Output Current1-Max	0.05 A
Voltage - Output (Max)	-
Dropout Voltage1-Max	0.5 V
Screening Level	Extended Industrial
Operating Temperature TJ-Max	125 °C
Output Voltage 2	3.3V
Line Regulation	0.3 %
Operating Temperature TJ-Min	-40 °C
Output Voltage1-Nom	3.3 V
Load Regulation	0.3 %
Output Voltage2-Max	3.432 V
Output Voltage2-Min	3.168 V
Output Current2-Max	0.05 A
Dropout Voltage2-Max	0.5 V
Product Category	LDO Voltage Regulators
Length	3mm
Height Seated (Max)	1.09mm
Width	2.97 mm
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

MIC5208-3.3YMM Product Details

MIC5208-3.3YMM Overview

Tube cases are used for delivery. The Liner regulator IC is packaged in 8-TSSOP, 8-MSOP (0.118, 3.00mm Width) case. On the Linear IC itself, there are 8 terminations. Fixed is the output type of the Voltage Regulator IC. As part of this electrical component, 2 regulators are implemented. Variations are made to the Surface Mount operating temperature range by the Voltage Regulator IC. Default settings are set to -40°C~125°C degrees. There is a Positive configured as the output function for this IC regulator. There is a current output of 50mA, 50mA from this regulator IC. There are a total of 8 pins on this board. There are 2 outputs total on this voltage regulator IC in order to ensure that prompt and sufficient performance is achieved. There is a dropout voltage of 10 volts on this IC regulator. Chips have 8 pins. For your information, the basic part number for this regulator IC is MIC5208. In this case, we have a typical PMIC - Power Management ICs component. There is one type of regulator for this device, which is FIXED POSITIVE MULTIPLE OUTPUT LDO REGULATOR. This IC regulator is a part of the - Series of devices.
