TPS71219DRCT Overview

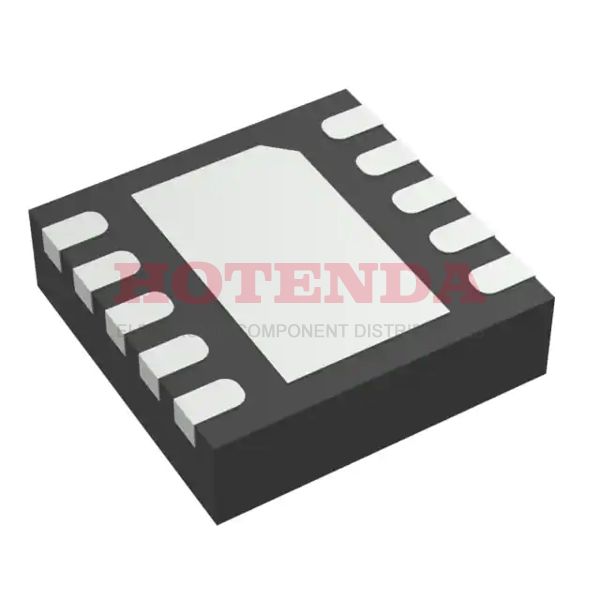

Tape & Reel (TR) cases are used for delivery. The Liner regulator IC is packaged in 10-VFDFN Exposed Pad case. On the Linear IC itself, there are 10 terminations. Adjustable (Fixed) is the output type of the Voltage Regulator IC. As part of this electrical component, 2 regulators are implemented. Variations are made to the Surface Mount operating temperature range by the Voltage Regulator IC. Default settings are set to -40°C~125°C degrees. There is a Positive configured as the output function for this IC regulator. There are a total of 10 pins on this board. There are 2 outputs total on this voltage regulator IC in order to ensure that prompt and sufficient performance is achieved. There is a dropout voltage of 10 volts on this IC regulator. Chips have 10 pins. For your information, the basic part number for this regulator IC is TPS71219. TR is the way in which the voltage regulator IC is packed. In order to meet the operation requirements, its maximal output current reaches 200mA. It operates in the 300μA Quiescent Current state. The top supply voltage can be 5.5V volts.
TPS71219DRCT Features
125mV dropout voltage
TR method of packing
TPS71219DRCT Applications
There are a lot of Texas Instruments
TPS71219DRCT Linear Voltage Regulators applications.
- Battery-powered device
- Communication device
- Personal communication device
- Portable telephone
- Electronic notebook
- Camera
- Video equipment
- CPU power supply
- Switching regulator
- Multiple-power supply system
