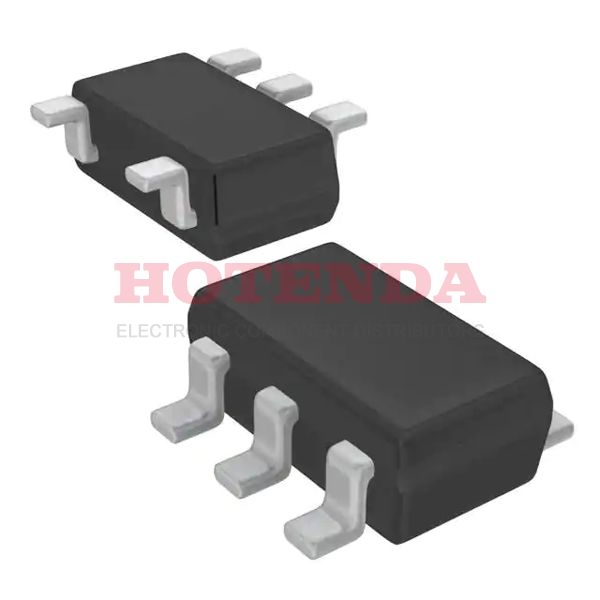

Name: MIC5270-3.0YM5-TR
Brand: Microchip Technology
SKU: MIC5270-3.0YM5-TR
Price: 2.08000 USD
Availability: InStock

new-10%

MIC5270-3.0YM5-TR

Manufacturer part number:MIC5270-3.0YM5-TR

Manufacturer:Microchip Technology

Description:-- Fixed 0.95 mm MIC5270 PMIC -- Series 5 SC-74A, SOT-753

Case Package:SOT-23

Datasheet:MIC5270-3.0YM5-TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	SC-74A, SOT-753
Surface Mount	YES
Number of Pins	5
Supplier Device Package	SOT-23-5
Number of Terminals	5
Mounting Style	SMD/SMT
Supplier Package	SOT-23
Input Voltage Range	-16 to -3.3 V
Maximum Input Voltage	-3.3 V
Junction to Ambient	235 °C/W
Mounting	Surface Mount
Polarity Type	Negative
Regulator Output Type	Fixed
Voltage Regulator Type	Linear
Dropout Voltage@Current (Max)	0.5@50mA/0.7@100mA
Operating Temperature Classification	Automotive
Package Type	SOT-23
Dropout Voltage@Current (Typ)	0.04@100uA/0.36@50mA
Operating Temp Range	-40C to 125C
Rad Hardened	No
MSL	MSL 1 - Unlimited
Maximum Operating Temperature	+ 125 C
Minimum Operating Temperature	- 40 C
Manufacturer	Microchip
Brand	Microchip Technology / Atmel
RoHS	Details
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Base Product Number	MIC5270
Mfr	Microchip Technology
Product Status	Active
Package Shape	RECTANGULAR
Operating Temperature	-40°C~125°C
Packaging	Tape & Reel (TR)
Series	--
JESD-609 Code	e4
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Type	LDO
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Max Operating Temperature	125°C
Min Operating Temperature	-40°C
HTS Code	8542.39.00.01
Subcategory	PMIC - Power Management ICs
Packing Method	TR
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Number of Functions	1
Terminal Pitch	0.95 mm
Reach Compliance Code	compliant
Base Part Number	MIC5270
Pin Count	5
JESD-30 Code	R-PDSO-G5
Function	LDO
Current - Supply (Max)	3mA
Number of Outputs	1
Qualification Status	Not Qualified
Voltage - Input (Max)	-16V
Output Voltage	-3V
Output Type	Fixed
Max Output Current	100mA
Polarity	Negative
Output Configuration	Negative
Output Current	0.1 A
Current - Output	100mA
Quiescent Current	35 uA
Control Features	--
Accuracy	2 %
Input Voltage (Min)	-16(V)
Voltage - Output (Min/Fixed)	-3V
Topology	LDO
Number of Regulators	1
Min Input Voltage	-16V
Protection Features	Over Current, Over Temperature
Current - Quiescent (Iq)	100μA
Voltage Dropout (Max)	0.9V @ 100mA
Input Voltage (Max)	-16 V
Max Input Voltage	-3.3V
PSRR	50dB (120Hz)
Seated Height-Max	1.45 mm
Dropout Voltage	500mV
Product Type	LDO Voltage Regulators
Dropout Voltage1-Nom	0.5 V
Min Output Voltage	-3V
Output Voltage1-Max	3.09 V
Output Voltage1-Min	2.91 V
Regulator Type	FIXED NEGATIVE SINGLE OUTPUT LDO REGULATOR
Voltage Tolerance-Max	3%
Output Current1-Max	0.1 A
Voltage - Output (Max)	--
Dropout Voltage1-Max	0.9 V
Screening Level	Extended Industrial
Operating Temperature TJ-Max	125 °C
Input Voltage Absolute-Max	20 V
Nominal Output Voltage	-3V
Output Voltage Accuracy	2 %
Adjustability	FIXED
Line Regulation	0.2 %/V
Operating Temperature TJ-Min	-40 °C
Output Voltage1-Nom	3 V
Load Regulation	2 %
Product	LDO Voltage Regulators
Input Voltage	-3.3(V)
Product Category	LDO Voltage Regulators
Output Voltage Range	-
Height	1.1mm
Length	2.9mm
Width	1.6mm
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

MIC5270-3.0YM5-TR Product Details

MIC5270-3.0YM5-TR Overview

The package is delivered in a Tape & Reel (TR) case. In order to package the IC voltage regulator, a SC-74A, SOT-753 case is used. This IC Regulator has a type of output called Fixed. There are 1 regulators implemented in this electroic component. Surface Mount can be adjusted in the Linear IC in order to vary the temperature range over which Linear Regulator operates. The IC voltage regulator must be maintained at -40°C~125°C degrees for it to function. As you can see, this regulator's output function is configured to be Negative. At present, it can produce an output of up to 100mA. As you can see, the regulator IC has a total of 5 pins. The regulator has a total of 1 outputs to make sure that it delivers prompt, sufficient outputs. A dropout voltage of 10 volts is what makes it a dropout voltage. Depending on the chip, 5 pins may be available. For your information, part number MIC5270 is the basic part number for this voltage regulator IC. As you can see, this regulator IC represents a typical PMIC - Power Management ICs component. As far as the regulator type, it is a FIXED NEGATIVE SINGLE OUTPUT LDO REGULATOR type. There is a TR way of packing the IC voltage regulators in the box. There is a maximum output current of 100mA for this regulator to meet the operational requirements. It operates in the 35 uA Quiescent Current state. The -- Series is a series of products made by D-Link. As a general rule, it is recommended that you use the IC voltage regulator when temperatures are below 125°C degrees Celsius. At the lowest operating temperature that can be reached by the chip, it is -40°C.
