Name: TPS70258PWPG4
Brand: Texas Instruments
SKU: TPS70258PWPG4
Availability: InStock

new-10%

TPS70258PWPG4

Manufacturer part number:TPS70258PWPG4

Manufacturer:Texas Instruments

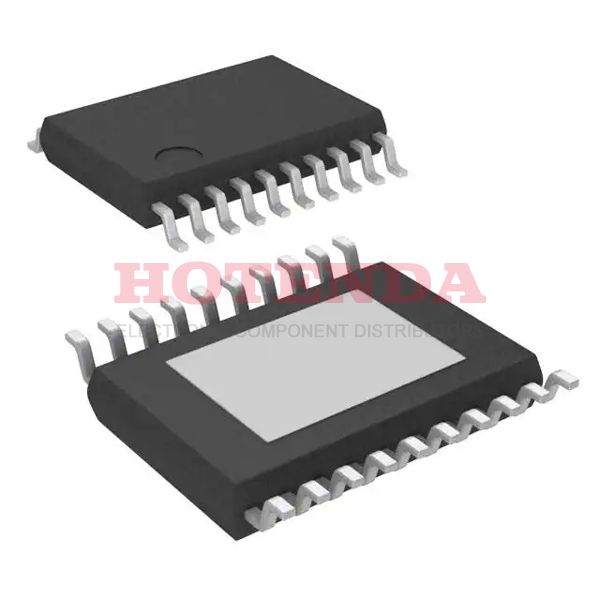

Description:Enable, Power Good, Reset, Sequencing Fixed 0.65mm TPS70258 PMIC 20 20-PowerTSSOP (0.173, 4.40mm Width)

Case Package:SOT-23

Datasheet:TPS70258PWPG4 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	6 Weeks
Mounting Type	Surface Mount
Package / Case	20-PowerTSSOP (0.173, 4.40mm Width)
Surface Mount	YES
Number of Pins	20
Operating Temperature	-40°C~125°C
Packaging	Tube
JESD-609 Code	e4
Part Status	Active
Moisture Sensitivity Level (MSL)	2 (1 Year)
Number of Terminations	20
ECCN Code	EAR99
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Power Rating	4.115W
Max Power Dissipation	4.115W
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Number of Functions	1
Terminal Pitch	0.65mm
Base Part Number	TPS70258
Pin Count	20
Current - Supply (Max)	230μA
Number of Outputs	2
Voltage - Input (Max)	6V
Output Voltage	2.5V
Output Type	Fixed
Max Output Current	500mA
Output Configuration	Positive
Power Dissipation	4.115W
Current - Output	500mA 250mA
Quiescent Current	190μA
Control Features	Enable, Power Good, Reset, Sequencing
Accuracy	2 %
Max Output Voltage	3.3V
Output Voltage 1	3.3V
Voltage - Output (Min/Fixed)	3.3V 2.5V
Number of Regulators	2
Min Input Voltage	2.7V
Protection Features	Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO)
Voltage Dropout (Max)	0.28V @ 500mA -
PSRR	60dB (1KHz), 50dB (1kHz)
Dropout Voltage	170mV
Dropout Voltage1-Nom	0.17V
Min Output Voltage	3.3V
Voltage Tolerance-Max	2%
Input Bias Current	190μA
Output Voltage Accuracy	2 %
Output Voltage 2	2.5V
Height	1.15mm
Length	6.5mm
Width	4.4mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

TPS70258PWPG4 Product Details

TPS70258PWPG4 Overview

Deliveries are in Tube cases. The package is in a 20-PowerTSSOP (0.173, 4.40mm Width) case. Basically, the voltage regulator chip is made up of 20 terminations. In this case, Fixed represents the output type of the Voltage Regulated IC. This part implements 2 regulator ICs, which can be found in the following table. Regulator IC varies the range of Surface Mount operating temperatures. The Voltage Regulated IC operates at a temperature of -40°C~125°C degrees, which is its operating temperature. It is configured for output function Positive on this regulator. There is an output current of 500mA 250mA on this regulator. The total number of pins in the regulator is 20. This IC regulator has a total of 2 outputs, which ensures a rapid, adequate performance when in use. There is a voltage dropout of 10 volts for this IC regulator. Several pins on the chip are 20-shaped. As an FYI, this IC voltage regulator has the basic part number TPS70258. The maximal output current reaches 500mA to meet the operating requirements. It operates in the 190μA Quiescent Current state.
