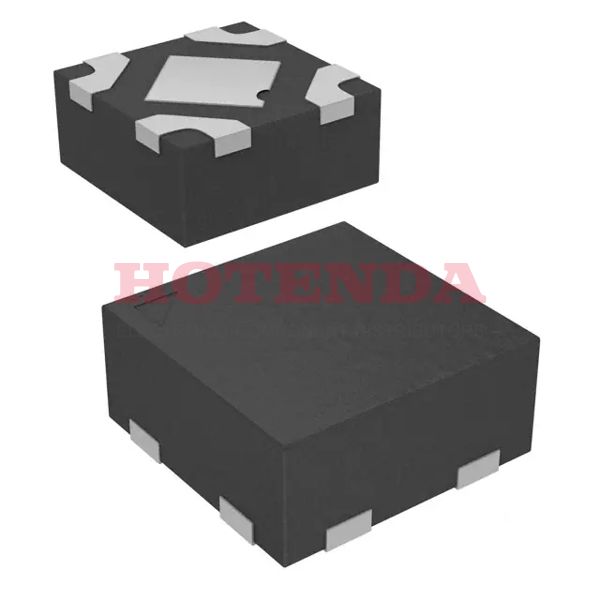

Name: MIC5365-1.5YMT-TR
Brand: Microchip Technology
SKU: MIC5365-1.5YMT-TR
Availability: InStock

new-10%

MIC5365-1.5YMT-TR

Manufacturer part number:MIC5365-1.5YMT-TR

Manufacturer:Microchip Technology

Description:Enable Fixed 0.625 mm MIC5365 PMIC -- Series 4-UDFN Exposed Pad, 4-TMLF®

Case Package:SOT-23

Datasheet:MIC5365-1.5YMT-TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	4-UDFN Exposed Pad, 4-TMLF®
Surface Mount	YES
Supplier Device Package	4-TMLF® (1x1)
Number of Terminals	4
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Base Product Number	MIC5365
Mfr	Microchip Technology
Product Status	Discontinued at Digi-Key
Package Shape	SQUARE
Manufacturer	Microchip Technology Inc
Operating Temperature	-40°C~125°C
Packaging	Tape & Reel (TR)
Series	--
JESD-609 Code	e4
Part Status	Discontinued
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
HTS Code	8542.39.00.01
Packing Method	TR
Technology	CMOS
Terminal Position	DUAL
Terminal Form	NO LEAD
Peak Reflow Temperature (Cel)	260
Number of Functions	1
Terminal Pitch	0.625 mm
Reach Compliance Code	compliant
Base Part Number	MIC5365
JESD-30 Code	S-PDSO-N4
Number of Outputs	1
Qualification Status	Not Qualified
Voltage - Input (Max)	5.5V
Output Type	Fixed
Output Configuration	Positive
Current - Output	150mA
Control Features	Enable
Voltage - Output (Min/Fixed)	1.5V
Number of Regulators	1
Protection Features	Over Current, Over Temperature
Current - Quiescent (Iq)	39μA
Voltage Dropout (Max)	0.38V @ 150mA
PSRR	80dB ~ 65dB (1kHz ~ 10kHz)
Seated Height-Max	0.6 mm
Dropout Voltage1-Nom	0.18 V
Output Voltage1-Max	1.545 V
Output Voltage1-Min	1.455 V
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Voltage Tolerance-Max	3%
Output Current1-Max	0.15 A
Voltage - Output (Max)	--
Dropout Voltage1-Max	0.38 V
Operating Temperature TJ-Max	125 °C
Input Voltage Absolute-Max	6 V
Adjustability	FIXED
Operating Temperature TJ-Min	-40 °C
Output Voltage1-Nom	1.5 V
Width	1 mm
Length	1 mm
RoHS Status	ROHS3 Compliant

MIC5365-1.5YMT-TR Product Details

MIC5365-1.5YMT-TR Overview

Deliveries are in Tape & Reel (TR) cases. The package is in a 4-UDFN Exposed Pad, 4-TMLF® case. In this case, Fixed represents the output type of the Voltage Regulated IC. This part implements 1 regulator ICs, which can be found in the following table. Regulator IC varies the range of Surface Mount operating temperatures. The Voltage Regulated IC operates at a temperature of -40°C~125°C degrees, which is its operating temperature. It is configured for output function Positive on this regulator. There is an output current of 150mA on this regulator. This IC regulator has a total of 1 outputs, which ensures a rapid, adequate performance when in use. As an FYI, this IC voltage regulator has the basic part number MIC5365. A FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR regulator is the type of regulator that is used for this device. Packing the voltage regulator IC in this way is called TR packing. As part of the -- Series, this IC voltage regulator belongs to that category.
