TPS650242RHBR Overview

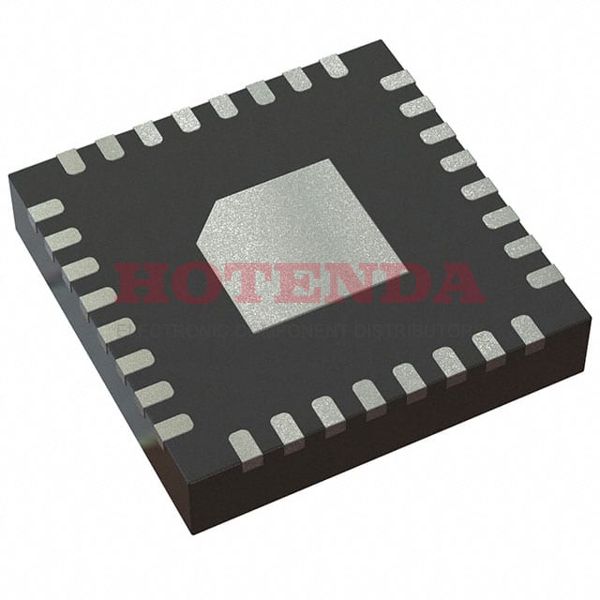

The package 32-VFQFN Exposed Pad is appropriate for battery instrument. This power management IC utilizes an analog IC POWER SUPPLY SUPPORT CIRCUIT. A total of 2 channels are available. 32 pins are on it. The package contains a Tape & Reel (TR) case. Surface Mount is in the way of this electronic component. The Power Management functions are available. For the electric part to perform effectively, it should operate at a temperature around -40°C~85°C TA. This electronic part has a chemistry of Lithium Ion/Polymer. It is always recommended that this battery protection IC is set to 3.6V. A TPS650242 family is used in it. There is a maximum supply voltage (Vsup) of 6V. A chip input voltage of 6V can be used to power it. Input voltages below 2.5V can be used with the manage IC.
TPS650242RHBR Features
Available in 32-VFQFN Exposed Pad Package
with 32 Pins
Mounting Type: Surface Mount
Battery Chemistry : Lithium Ion/Polymer
operate supply voltage at the range of 3.6V
Supply Voltage-Max (Vsup) : 6V
Output Voltage at the range of 1V
TPS650242RHBR Applications
There are a lot of Texas Instruments
TPS650242RHBR Battery Management ICs applications.
- Golf carts
- Electric-powered machinery
- Fork lifts
- Grid power infrastructure
- Cell phone towers
- A/C power substations
- Internet infrastructure equipment
- Aviation ground support systems
- Tower communications
- Weather stations
