Name: TMS370C758BFNT
Brand: Texas Instruments
SKU: TMS370C758BFNT
Availability: InStock

new-10%

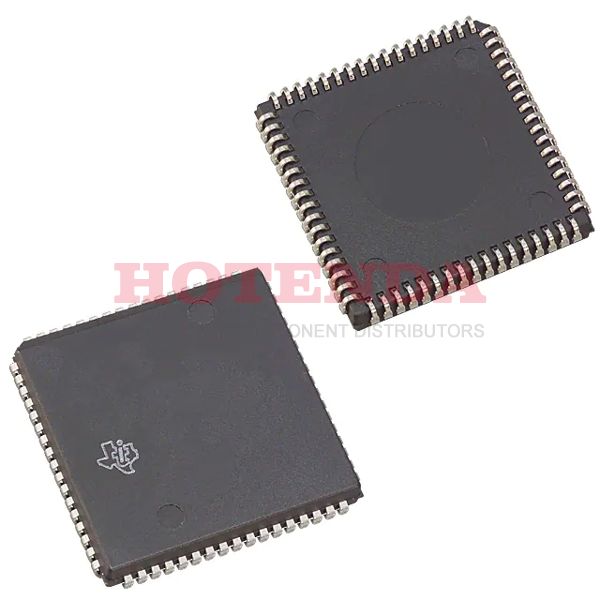

TMS370C758BFNT

Manufacturer part number:TMS370C758BFNT

Manufacturer:Texas Instruments

Description:32KB 32K x 8 OTP 8-Bit Microcontroller TMS370 Series 370C758 68 Pin 5MHz 5V 68-LCC (J-Lead)

Case Package:SOT-23

Datasheet:TMS370C758BFNT Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	68-LCC (J-Lead)
Surface Mount	YES
Number of Pins	68
Operating Temperature	-40°C~105°C TA
Packaging	Tray
Series	TMS370
Pbfree Code	no
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	68
Terminal Position	QUAD
Terminal Form	J BEND
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Supply Voltage	5V
Reach Compliance Code	not_compliant
Frequency	5MHz
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Base Part Number	370C758
Pin Count	68
Qualification Status	Not Qualified
Operating Supply Voltage	5V
Power Supplies	5V
Interface	SCI, SPI
Memory Size	32kB
Oscillator Type	Internal
Number of I/O	55
RAM Size	1K x 8
Memory Type	EPROM, OTP
Voltage - Supply (Vcc/Vdd)	4.5V~5.5V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
Peripherals	PWM, WDT
Program Memory Type	OTP
Core Size	8-Bit
Program Memory Size	32KB 32K x 8
Connectivity	SCI, SPI
Supply Current-Max	56mA
Bit Size	8
Data Converter	A/D 8x8b
Has ADC	YES
DMA Channels	NO
Data Bus Width	8b
PWM Channels	YES
DAC Channels	NO
Number of Timers/Counters	2
Address Bus Width	16
EEPROM Size	256 x 8
Number of Programmable I/O	64
Height Seated (Max)	4.57mm
RoHS Status	Non-RoHS Compliant
Lead Free	Contains Lead

TMS370C758BFNT Product Details

TMS370C758BFNT Overview

68-LCC (J-Lead)-packages are available. There are 55 I/O ports on this device. Device mounting type Surface Mount is the type of mounting that the Microcontroller uses. There is a 8-Bit core at the core of this MCU. There is a type of program memory called OTP in the Microcontroller. There is a temperature range of -40°C~105°C TA for this Microcontroller. An electrical component of this type belongs to the TMS370 series. This program memory has a size of 32KB 32K x 8, which indicates what the size of the program memory is. Devices of this type belong to the MICROCONTROLLER power supply/socket/peripheral ICs category. This chip has a total of 68 terminations on MCU chip. You get a 8-bit size. This Microcontroller chip is powered by 5V volts. There are NO DMA channels on this Microcontroller chip. The part has a memory size of 32kB. The base part number 370C758 provides alternatives. This device is extremely efficient when operated at a frequency of 5MHz. Using the PWM channel YES, the device works with the motor. In this chip, 68 pins can be accessed. Using the timer/counter system, it has 2 timers/counters. It has 68 pins in total. There is EPROM, OTP memory in this equipment. This device has 64 programmable input and output channels.
