Name: PIC24HJ32GP204-H/ML
Brand: Microchip Technology
SKU: PIC24HJ32GP204-H/ML
Availability: InStock

new-10%

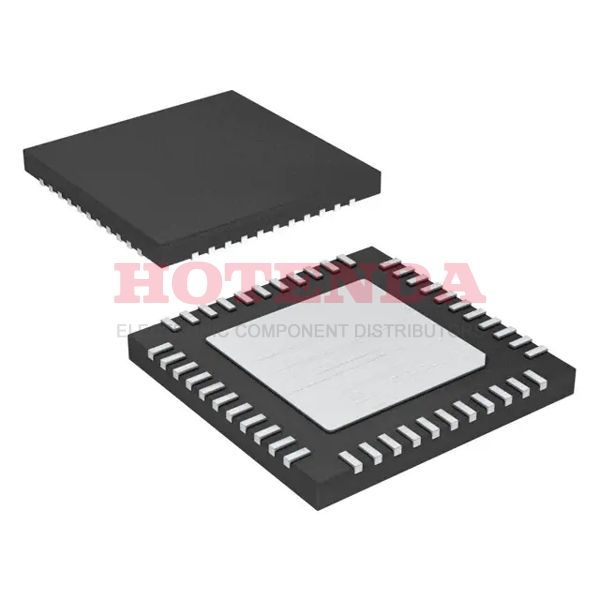

PIC24HJ32GP204-H/ML

Manufacturer part number:PIC24HJ32GP204-H/ML

Manufacturer:Microchip Technology

Description:32KB 11K x 24 FLASH PIC 16-Bit Microcontroller Automotive, AEC-Q100, PIC® 24H Series PIC24HJ32GP204 44 Pin 40MHz 3.3V 44-VQFN Exposed Pad

Case Package:SOT-23

Datasheet:PIC24HJ32GP204-H/ML Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	44-VQFN Exposed Pad
Number of Pins	44
Supplier Device Package	44-QFN (8x8)
Data Converters	A/D 13x10b/12b
Number of I/Os	35
RoHS	Compliant
Package	Tube
Base Product Number	PIC24HJ32GP204
Mfr	Microchip Technology
Product Status	Obsolete
Operating Temperature	-40°C~150°C TA
Packaging	Tube
Series	Automotive, AEC-Q100, PIC® 24H
Published	2012
JESD-609 Code	e3
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	44
Terminal Finish	Matte Tin (Sn) - annealed
Max Operating Temperature	150 °C
Min Operating Temperature	-40 °C
Terminal Position	QUAD
Supply Voltage	3.3V
Terminal Pitch	0.65mm
Frequency	40MHz
Base Part Number	PIC24HJ32GP204
Pin Count	44
Operating Supply Voltage	3.3V
Interface	I2C, IrDA, LIN, SPI, UART, USART
Max Supply Voltage	3.9 V
Min Supply Voltage	3 V
Memory Size	32kB
Oscillator Type	Internal
Number of I/O	35
Speed	20 MHz
RAM Size	2K x 8
Memory Type	FLASH
Voltage - Supply (Vcc/Vdd)	3V~3.6V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
Core Processor	PIC
Peripherals	Brown-out Detect/Reset, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	16-Bit
Program Memory Size	32KB 11K x 24
Connectivity	I2C, IrDA, LINbus, SPI, UART/USART
Bit Size	16
Data Converter	A/D 13x10b/12b
Has ADC	YES
DMA Channels	NO
Data Bus Width	16b
PWM Channels	YES
DAC Channels	NO
Number of Timers/Counters	3
ROM (words)	10922
Core Architecture	PIC
EEPROM Size	--
On Chip Program ROM Width	24
CPU Family	PIC
Max Frequency	40 MHz
Number of Programmable I/O	35
Length	8mm
Height Seated (Max)	1mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

PIC24HJ32GP204-H/ML Product Details

PIC24HJ32GP204-H/ML Overview

The package is in 44-VQFN Exposed Pad format. The MCU has 35 I/O ports. There is a mounting type Surface Mount associated with this Microcontroller. This Microcontroller is based on the 16-Bit core. There is a memory type of FLASH in its program memory. The temperature range that this Microcontroller operates at is -40°C~150°C TA. The electrical component that you are looking at belongs to the Automotive, AEC-Q100, PIC® 24H series of components. Microcontroller has abundant program memory size of 32KB 11K x 24. The PIC Core Processor powers the device and is one of its key features. This Microcontroller belongs to the MICROCONTROLLER uPs/uCs/peripheral ICs type. During the manufacture of the IC chip, there is a number 44 of terminations. A 16-bit operation is performed by this part. There is an output of 3.3V volts from the Microcontroller chip. A total of NO DMA channels are available on MCU chip. This MCU is implemented with 32kB memory. PIC24HJ32GP204 serves as a base part number to find alternatives. It exhibits good efficiency when it operates at a frequency of 40MHz and it is able to operate at a high frequency. It is possible for the device to work with the motor using the PWM channel YES. It is possible to access the 44 pins on the chip through the 44 pins. It is equipped with 3 timers and counters. It consists of 44 pins. As far as the CPU is concerned, it is embedded with the the PIC family of processors. There's an integrated FLASH memory in the equipment. There is a PIC core architecture integrated into it. Among the eight programmable I/O sections, there are many different ways in which it can be programmed.
