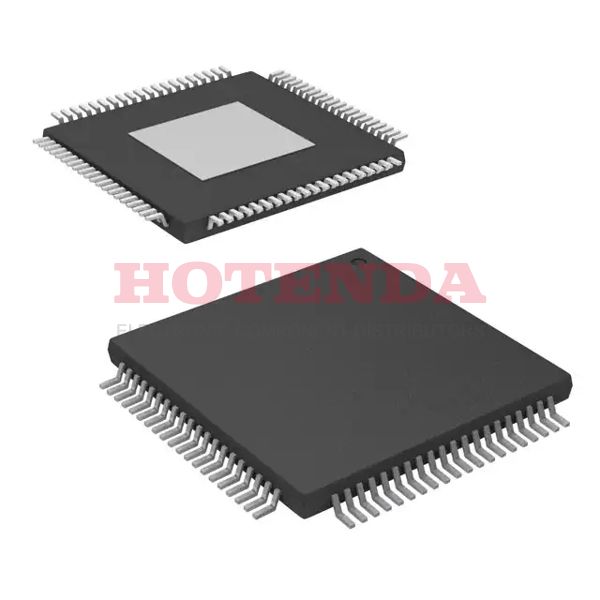

TMS320F28069PFPQ Description
Microcontrollers (MCUs) of the F2806x series offer the strength of the C28x core and CLA along with highly integrated control peripherals in low pin-count devices. This family offers a high level of analog integration and is code-compatible with earlier C28x-based programs.
Single-rail operation is possible because to an integrated voltage regulator. The HRPWM module has been improved to support dual-edge control (frequency modulation). There are now analog comparators that can be wired directly to control the ePWM outputs and have inbuilt 10-bit references. The ADC supports ratio-metric VREFHI/VREFLO references and converts between 0 and 3.3-V fixed full-scale range. Low overhead and latency have been optimized for the ADC interface.
TMS320F28069PFPQ Features
Peripheral Interrupt Expansion (PIE) block that
supports all peripheral interrupts
Three 32-bit CPU timers
Advanced control peripherals
Up to 8 Enhanced Pulse-Width Modulator (ePWM) modules
On-chip temperature sensor
128-bit security key and lock
TMS320F28069PFPQ Applications
Air conditioner outdoor unit
Door operator drive control
Inverter & motor control
On-board (OBC) & wireless charger
Automated sorting equipment
CNC control
Textile machine
Welding machine
EV charging station power module
Wireless vehicle charging module
Energy storage power conversion system (PCS)
Central inverter
Micro inverter
Solar power optimizer
String inverter
AC drive control module
AC drive power stage module
Linear motor power stage
Servo drive control module
Servo drive power stage module
AC-input BLDC motor drive
DC-input BLDC motor drive
Industrial AC-DC
Three phase UPS
