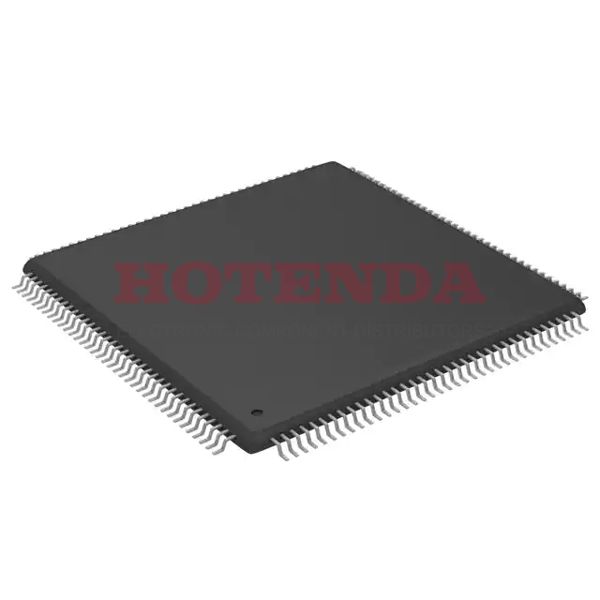

Name: DSPIC33EP512MU814-I/PH
Brand: Microchip Technology
SKU: DSPIC33EP512MU814-I/PH
Price: 13.05000 USD
Availability: InStock

new

DSPIC33EP512MU814-I/PH

Manufacturer part number:DSPIC33EP512MU814-I/PH

Manufacturer:Microchip Technology

Description:512KB 170K x 24 FLASH dsPIC 16-Bit Microcontroller dsPIC™ 33EP Series DSPIC33EP512MU814 144 Pin 60MHz 3.3V 144-TQFP

Case Package:SOT-23

Datasheet:DSPIC33EP512MU814-I/PH Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Mounting Type	Surface Mount
Package / Case	144-TQFP
Surface Mount	YES
Number of Pins	144
Supplier Device Package	144-TQFP (16x16)
Number of Terminals	144
Mounting Style	SMD/SMT
Interfaces	CAN/I2C/SPI/UART/USB
Data Converters	A/D 32x10b/12b
Package	Tray
Base Product Number	DSPIC33EP512MU814
Mfr	Microchip Technology
Product Status	Active
Family Name	dsPIC33EP
Instruction Set Architecture	C
Dimensions	16 x 16 x 1mm
Typical Operating Supply Voltage	3 → 3.6 V
Package Type	TQFP
Maximum Operating Temperature	+85 °C
Minimum Operating Temperature	-40 °C
MSL	MSL 3 - 168 hours
Qualification	AEC-Q100
Number of I/Os	122 I/O
Interface Type	ECAN, I2C, SPI, UART, USB
Manufacturer	Microchip
Brand	Microchip Technology
Tradename	dsPIC
RoHS	Details
Package Shape	SQUARE
Number of I/O Lines	122
Operating Temperature	-40°C~85°C TA
Packaging	Tray
Series	dsPIC™ 33EP
Published	2011
JESD-609 Code	e3
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	144
ECCN Code	3A991.A.2
Terminal Finish	Matte Tin (Sn) - annealed
HTS Code	8542.31.00.01
Terminal Position	QUAD
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Supply Voltage	3.3V
Terminal Pitch	0.4 mm
Reach Compliance Code	compliant
Frequency	60MHz
Time@Peak Reflow Temperature-Max (s)	40
Base Part Number	DSPIC33EP512MU814
Pin Count	144
JESD-30 Code	S-PQFP-G144
Qualification Status	Not Qualified
Operating Supply Voltage	3 V to 3.6 V
Supply Voltage-Max (Vsup)	3.6V
Power Supplies	3.3V
Temperature Grade	INDUSTRIAL
Supply Voltage-Min (Vsup)	3V
Interface	CAN, I2C, IrDA, LIN, SPI, UART, USART, USB
Memory Size	512kB
Oscillator Type	Internal
Number of I/O	122
Speed	70 MIPs
RAM Size	24K x 16
Memory Type	FLASH, RAM
Voltage - Supply (Vcc/Vdd)	3V~3.6V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
Core Processor	dsPIC
Peripherals	Brown-out Detect/Reset, DMA, Motor Control PWM, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	16-Bit
Program Memory Size	512KB 170K x 24
Connectivity	CANbus, I2C, IrDA, LINbus, QEI, SPI, UART/USART, USB OTG
Supply Current-Max	320 mA
Bit Size	16
Data Converter	A/D 32x10b/12b
Watchdog Timer	Yes
Has ADC	YES
DMA Channels	YES
Data Bus Width	16b
PWM Channels	YES
DAC Channels	NO
Seated Height-Max	1.2 mm
Number of Timers/Counters	9
Product Type	DSP - Digital Signal Processors & Controllers
Density	4.2 Mb
ROM (words)	548864
EEPROM Size	--
On Chip Program ROM Width	8
CPU Family	DSPIC33
Boundary Scan	YES
Low Power Mode	YES
Format	FLOATING-POINT
Integrated Cache	NO
Number of UART Channels	4
RAM (bytes)	53248
Number of ADC Channels	32
Number of Timers	9
ROM Programmability	FLASH
Number of Cores	1 Core
Number of External Interrupts	5
Number of PWM Channels	14
Number of I2C Channels	2
On Chip Data RAM Width	8
Number of SPI Channels	4
Number of DMA Channels	15
Product	DSCs
Number of Ethernet Channels	1
Product Category	Digital Signal Processors & Controllers - DSP, DSC
Device Core	dsPIC
Height	1mm
Length	16mm
Width	16mm
REACH SVHC	No SVHC
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

DSPIC33EP512MU814-I/PH Product Details

DSPIC33EP512MU814-I/PH Overview

144-TQFP-packages are available. There are 122 I/O ports on this device. Device mounting type Surface Mount is the type of mounting that the Microcontroller uses. There is a 16-Bit core at the core of this MCU. There is a type of program memory called FLASH in the Microcontroller. There is a temperature range of -40°C~85°C TA for this Microcontroller. An electrical component of this type belongs to the dsPIC™ 33EP series. This program memory has a size of 512KB 170K x 24, which indicates what the size of the program memory is. dsPIC Core processors are used in MCU. Devices of this type belong to the MICROCONTROLLER power supply/socket/peripheral ICs category. This chip has a total of 144 terminations on MCU chip. You get a 16-bit size. This Microcontroller chip is powered by 3.3V volts. There are YES DMA channels on this Microcontroller chip. The part has a memory size of 512kB. The base part number DSPIC33EP512MU814 provides alternatives. This device is extremely efficient when operated at a frequency of 60MHz. Using the PWM channel YES, the device works with the motor. In this chip, 144 pins can be accessed. Using the timer/counter system, it has 9 timers/counters. It has 144 pins in total. In addition to this, the device is embedded with the the DSPIC33 CPU family. There is FLASH, RAM memory in this equipment. With 4 UART channels, it has all the features you may need. In total, it has 32 ADC channels for the measurement of signals. As far as the PWM channel count is concerned, the device makes use of 14 channels. As part of the design, the part has been designed to feature 2 channels for I2C communication. In this part, there are 5 interrupts that are external to the system. There are 9 bits on a Integrated Circuit chip.
