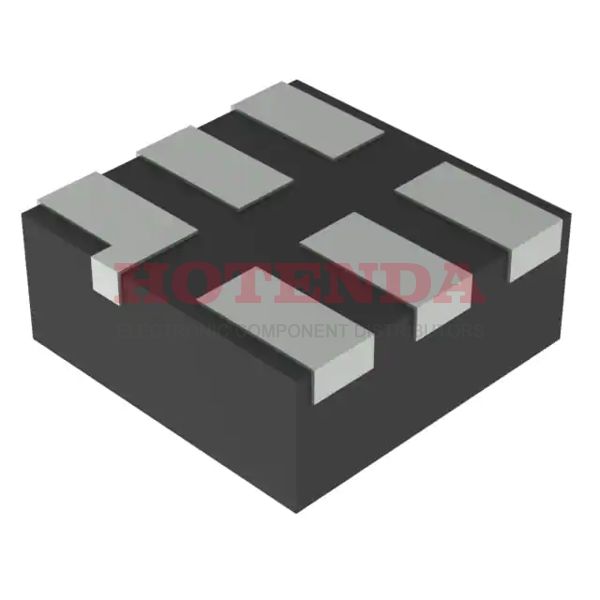

SN74LVC1G08DSF2 Overview
The part is convenient to ship overseas because it is packed in a 6-XFDFN. The advanced packaging method Tape & Reel (TR) provides high reliability. A AND Gate logic principle governs its operation. Voltage 1.65V~5.5V is needed to ensure the part's full functionality. Operational temperature extended around -40°C~85°C. Mounted in Surface Mount. Output current is 32mA 32mA in the high and low states. 74LVC is the series it belongs to. The total number of terminations is 6. There are 1 functions that significantly improve the user experience. As part of LVC/LCX/Z, this chip is used. Try searching with 74LVC1G08 to find device variants. Logic devices with Surface Mount mounting are widely used in many applications. Datasheets for functions of 6 pins are available. Inputs are limited to 2. Quiescent parts have 10μA current flowing through them. The device consists of 1 circuits.
SN74LVC1G08DSF2 Features
AND Gate Logic Type
Operating Temperature: -40°C~85°C
LVC/LCX/Z Family
Quiescent Current: 10μA
SN74LVC1G08DSF2 Applications
There are a lot of Texas Instruments
SN74LVC1G08DSF2 Gates and Inverters applications.
- Electric grinding wheel
- Electrical tools
- Sewing machine
- DVD
- VCD
- Computer
- Television
- Washing machine
- Range hood
- Refrigerator
