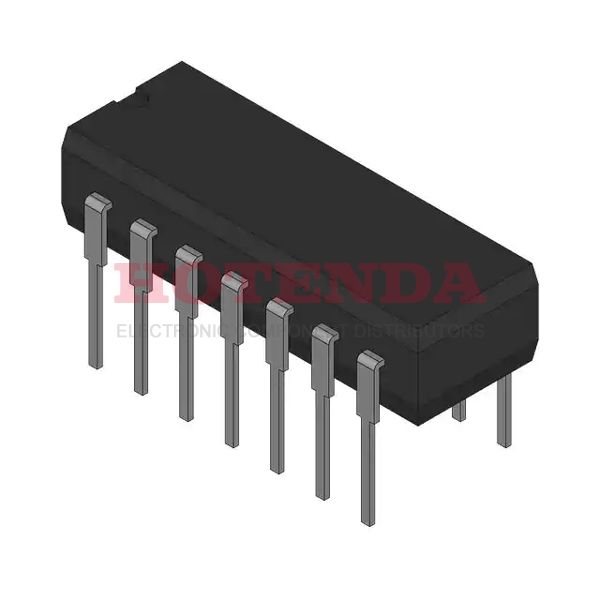

74VHC86N Overview
The part can be shipped overseas conveniently because it is packaged in 14-DIP (0.300, 7.62mm). In order to provide high reliability, an advanced packaging method Tube is used. As a result, it works on the principle of XOR (Exclusive OR). The part must have a voltage of 2V~5.5V in order to function properly. Operating temperature around -40°C~85°C extended. Through Hole is the mounting position of the part. In the low and high states of output current, the current is 8mA 8mA. This is part of the 74VHC series. Use 74VHC86 to search for device variants. Many applications use this logic device with Through Hole mounting. The functions of 14 pins can be found in the datasheets. There are 2 inputs on this part. When the part is quiescent, 2μA current flows through it. The device has 1 outputs. A logical operation through a gate of 4.
74VHC86N Features
XOR (Exclusive OR) Logic Type
Operating Temperature: -40°C~85°C
Quiescent Current: 2μA
4 Gates
74VHC86N Applications
There are a lot of ON Semiconductor
74VHC86N Gates and Inverters applications.
- Electrical tools
- Sewing machine
- DVD
- VCD
- Computer
- Television
- Washing machine
- Range hood
- Refrigerator
- VCR
