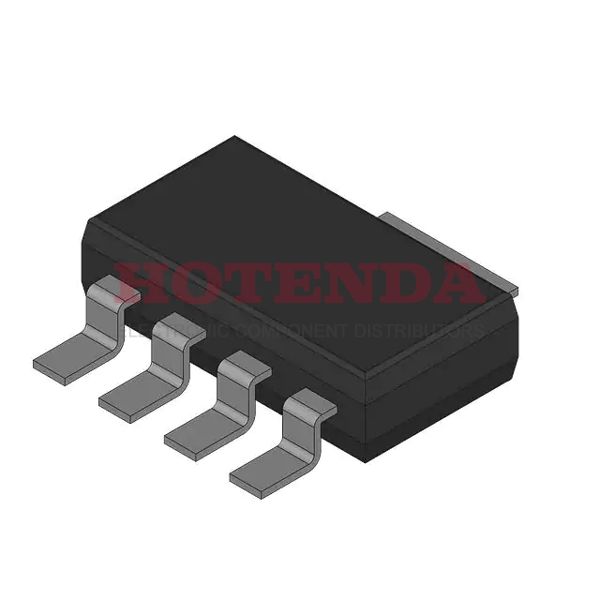

Name: REG104GA-2.7/2K5
Brand: Texas Instruments
SKU: REG104GA-2.7/2K5
Price: 1.58000 USD
Availability: InStock

new-10%

REG104GA-2.7/2K5

Manufacturer part number:REG104GA-2.7/2K5

Manufacturer:Texas Instruments

Description:1.27mm PMIC 5 SOT-223

Case Package:SOT-23

Datasheet:REG104GA-2.7/2K5 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Surface Mount	YES
Package / Case	SOT-223
Number of Terminations	6
ECCN Code	EAR99
HTS Code	8542.39.00.01
Subcategory	Other Regulators
Packing Method	TAPE AND REEL
Technology	NMOS
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Number of Functions	1
Terminal Pitch	1.27mm
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Pin Count	5
JESD-30 Code	R-PDSO-G6
Number of Outputs	1
Qualification Status	Not Qualified
Operating Temperature (Max)	85°C
Operating Temperature (Min)	-40°C
Voltage - Output	2.7V
Output Voltage 1	2.7V
Input Voltage (Min)	3.6V
Input Voltage (Max)	15V
Dropout Voltage1-Nom	0.23V
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Voltage Tolerance-Max	3%
Output Current1-Max	1A
Dropout Voltage1-Max	0.48V
Operating Temperature TJ-Max	85°C
Input Voltage Absolute-Max	16V
Adjustability	FIXED
Load Regulation-Max(%)	0.0945%
Line Regulation-Max (%/V)	0.0945%
Operating Temperature TJ-Min	-40°C
Height Seated (Max)	1.8mm
Width	3.5mm
Length	6.5mm
RoHS Status	RoHS Compliant

REG104GA-2.7/2K5 Product Details

REG104GA-2.7/2K5 Description

The REG104 family of linear regulators features low ground pin current, low noise, and low dropout characteristics. Its innovative DMOS technology offers a substantial upgrade over earlier designs, including superior transient performance and a low dropout voltage (only 230mV typ at full load). Furthermore, unlike typical low dropout regulators that are difficult to correct for and need expensive low ESR capacitors higher than 1 F, no output capacitor is necessary for stability.
