Name: MIC2940A-12WU
Brand: Microchip Technology
SKU: MIC2940A-12WU
Price: 3.06000 USD
Availability: InStock

new-10%

MIC2940A-12WU

Manufacturer part number:MIC2940A-12WU

Manufacturer:Microchip Technology

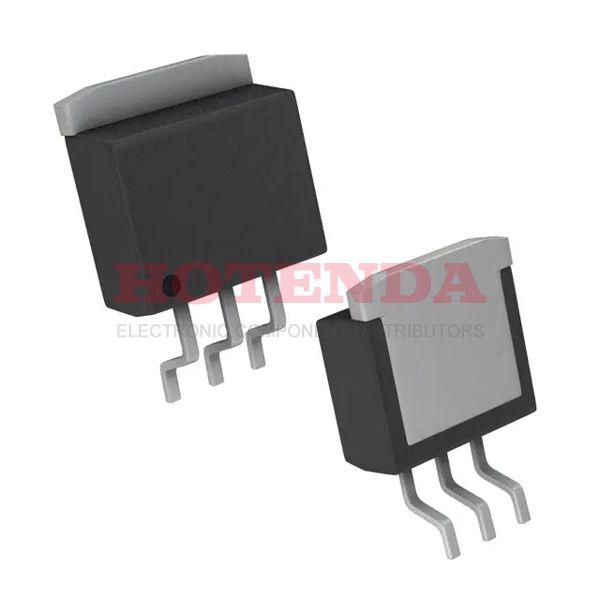

Description:-- Fixed 2.54 mm MIC2940A-12 PMIC -- Series 3 +Tab TO-263-4, D2Pak (3 Leads + Tab), TO-263AA

Case Package:SOT-23

Datasheet:MIC2940A-12WU Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	TO-263-4, D2Pak (3 Leads + Tab), TO-263AA
Surface Mount	YES
Supplier Device Package	TO-263-3
Number of Terminals	3
Mounting Style	SMD/SMT
Polarity Type	Positive
Regulator Output Type	Fixed
Voltage Regulator Type	Linear
Dropout Voltage@Current (Max)	0.15@5mA/0.25@250mA
Operating Temperature Classification	Automotive
Package Type	TO-263
Dropout Voltage@Current (Typ)	0.06@5mA/0.2@250mA
Operating Temp Range	-40C to 125C
Rad Hardened	No
Mounting	Surface Mount
Maximum Operating Temperature	+ 125 C
Minimum Operating Temperature	- 40 C
Manufacturer	Microchip
Brand	Microchip Technology / Atmel
RoHS	Details
Package	Tube
Base Product Number	MIC2940
Mfr	Microchip Technology
Product Status	Active
Package Shape	RECTANGULAR
Operating Temperature	-40°C~125°C
Packaging	Tube
Published	1997
Series	--
Tolerance	2.5 %
JESD-609 Code	e3
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
ECCN Code	EAR99
Type	LDO
Terminal Finish	Matte Tin (Sn) - annealed
Max Operating Temperature	125°C
Min Operating Temperature	-40°C
HTS Code	8542.39.00.01
Subcategory	PMIC - Power Management ICs
Technology	BIPOLAR
Terminal Position	SINGLE
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Number of Functions	1
Terminal Pitch	2.54 mm
Reach Compliance Code	not_compliant
Base Part Number	MIC2940A-12
Pin Count	3 +Tab
JESD-30 Code	R-PSSO-G3
Current - Supply (Max)	70mA
Number of Outputs	1
Qualification Status	Not Qualified
Voltage - Input (Max)	26V
Output Voltage	12V
Output Type	Fixed
Max Output Current	1.2A
Polarity	Positive
Output Configuration	Positive
Output Current	1250(mA)
Current - Output	1.25A
Quiescent Current	500(uA)
Control Features	--
Input Voltage (Min)	2(V)
Voltage - Output (Min/Fixed)	12V
Topology	LDO
Number of Regulators	1
Min Input Voltage	2V
Protection Features	Over Current, Over Temperature, Reverse Polarity
Current - Quiescent (Iq)	500μA
Voltage Dropout (Max)	0.6V @ 1.25A
Max Input Voltage	26V
PSRR	--
Reference Voltage	1.235V
Seated Height-Max	4.902 mm
Dropout Voltage	400mV
Product Type	LDO Voltage Regulators
Min Output Voltage	12V
Output Voltage1-Max	12.3 V
Output Voltage1-Min	11.7 V
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Output Current1-Max	1.25 A
Voltage - Output (Max)	--
Dropout Voltage1-Max	0.6 V
Operating Temperature TJ-Max	125 °C
Input Bias Current	60nA
Output Voltage Accuracy	�1 %
Line Regulation	0.5%
Operating Temperature TJ-Min	-40 °C
Output Voltage1-Nom	12 V
Load Regulation	0.16%
Input Voltage	26(V)
Product Category	LDO Voltage Regulators
Quiescent Current (Max)	0.5 mA
Width	8.7755 mm
Length	10.363 mm
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

MIC2940A-12WU Product Details

MIC2940A-12WU Overview

Tube cases are used for delivery. The Liner regulator IC is packaged in TO-263-4, D2Pak (3 Leads + Tab), TO-263AA case. Fixed is the output type of the Voltage Regulator IC. As part of this electrical component, 1 regulators are implemented. Variations are made to the Surface Mount operating temperature range by the Voltage Regulator IC. Default settings are set to -40°C~125°C degrees. There is a Positive configured as the output function for this IC regulator. There is a current output of 1.25A from this regulator IC. There are a total of 3 +Tab pins on this board. There are 1 outputs total on this voltage regulator IC in order to ensure that prompt and sufficient performance is achieved. There is a dropout voltage of 10 volts on this IC regulator. For your information, the basic part number for this regulator IC is MIC2940A-12. In this case, we have a typical PMIC - Power Management ICs component. There is one type of regulator for this device, which is FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR. In order to meet the operation requirements, its maximal output current reaches 1.2A. It operates in the 500(uA) Quiescent Current state. This IC regulator is a part of the -- Series of devices. You should use the regulator IC when the temperature is below 125°C. It is not possible to operate the chip below -40°C operating temperature. This IC regulator has a tolerance of 2.5 %, which is quite low.
