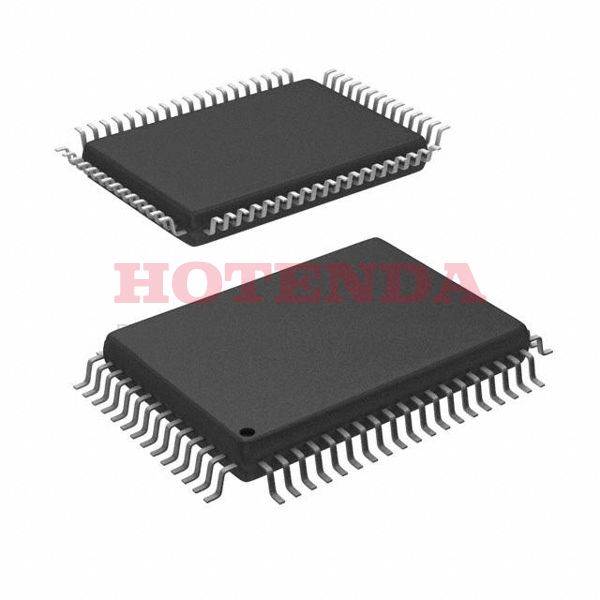

MSP430P325AIPG Description
The MSP430P325AIPG is a family of ultra-low power mixed-signal microcontrollers made up of a number of components with distinct modules suited for diverse applications. The microcontroller is built to run off batteries for a prolonged application lifespan. The MSP430 achieves optimum code efficiency thanks to a constant generator, a 16-bit RISC architecture, and 16-bit integrated registers on the CPU. A wake-up from a low-power mode to an active mode is provided by the frequency-locked-loop (FLL) and the digitally controlled oscillator.
MSP430P325AIPG Features
Five Power-Saving Modes
Serial Onboard Programming
Wakeup From Standby Mode in 6 s
Integrated 12+2 Bit A/D Converter
Low Supply Voltage Range, 2.5 V – 5.5 V
Low Operation Current, 400 A at 1 MHz, 3 V
Integrated LCD Driver for up to 84 Segments
Programmable Code Protection by Security Fuse
16-Bit RISC Architecture, 300 ns Instruction Cycle Time
EPROM Version Available for Prototyping: PMS430E325A
Ultra-Low Power Consumption (Standby Mode Down to 0.1 A)
Single Common 32 kHz Crystal, Internal System Clock up to 3.3 MHz
MSP430P325AIPG Applications
Industrial
Automotive
Enterprise systems
