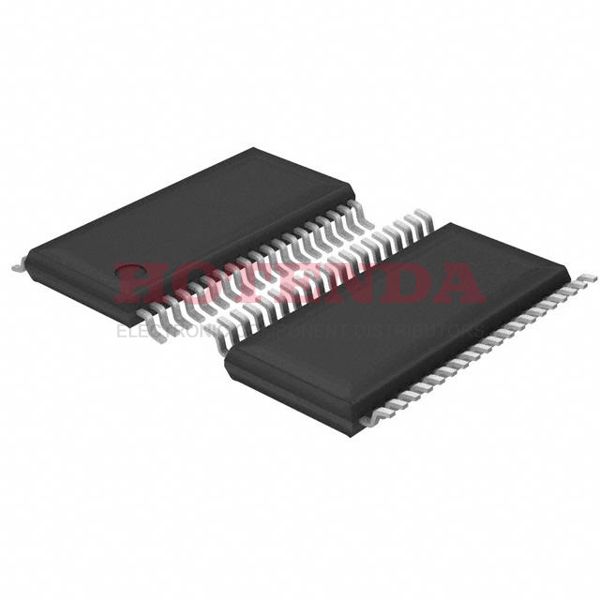

Name: MSP430FR5737IDAR
Brand: Texas Instruments
SKU: MSP430FR5737IDAR
Availability: InStock

new-10%

MSP430FR5737IDAR

Manufacturer part number:MSP430FR5737IDAR

Manufacturer:Texas Instruments

Description:16KB 16K x 8 FRAM CPUXV2 16-Bit Microcontroller MSP430™ FRAM Series MSP430 38 Pin 24MHz 3V 38-TSSOP (0.240, 6.10mm Width)

Case Package:SOT-23

Datasheet:MSP430FR5737IDAR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	38-TSSOP (0.240, 6.10mm Width)
Surface Mount	YES
Number of Pins	38
Operating Temperature	-40°C~85°C TA
Packaging	Tape & Reel (TR)
Series	MSP430™ FRAM
JESD-609 Code	e4
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	2 (1 Year)
Number of Terminations	38
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Supply Voltage	3V
Frequency	24MHz
Base Part Number	MSP430
Pin Count	38
Operating Supply Voltage	3.6V
Interface	I2C, SPI, UART
Memory Size	16kB
Oscillator Type	Internal
Number of I/O	30
RAM Size	1K x 8
Memory Type	FRAM, ROMless
Voltage - Supply (Vcc/Vdd)	2V~3.6V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	CPUXV2
Peripherals	Brown-out Detect/Reset, POR, PWM, WDT
Program Memory Type	FRAM
Core Size	16-Bit
Program Memory Size	16KB 16K x 8
Connectivity	I2C, IrDA, LINbus, SCI, SPI, UART/USART
Supply Current-Max	4.3mA
Bit Size	16
Watchdog Timer	Yes
Has ADC	YES
DMA Channels	YES
Data Bus Width	16b
PWM Channels	YES
DAC Channels	NO
Number of Timers/Counters	5
Number of UART Channels	2
Number of GPIO	33
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

MSP430FR5737IDAR Product Details

MSP430FR5737IDAR Overview

This Microcontroller comes in a 38-TSSOP (0.240, 6.10mm Width) package. This Microcontroller has 30 I/Os. The Mounting Type of the Microcontroller is Surface Mount. The MCU is based on the 16-Bit core. This Microcontroller's program memory type is FRAM. The Microcontroller runs in -40°C~85°C TA Operating Temperature. Microcontroller runs in MSP430™ FRAM Series. The size of the program memory of Microcontroller is 16KB 16K x 8. MCU is powered by CPUXV2 Core Processor. The device belongs to MICROCONTROLLER, RISC uPs/uCs/Peripheral ICs Type. The MCU has a number of 38 terminals. Microcontroller comes with 16 bit size. The component always operates in 3V supply voltage. MCU chip has YES DMA channels. The part owns 16kB memory size. You can find alternatives through the base part number MSP430. MCU's frequency is 24MHz. The device works in YES PWM channels. The pin number of the component remains 38. It has 5 timers/counters. It counts 38 pins. This equipment features FRAM, ROMless memory. It enjoys 2 UART channels.
