Name: TMS5702134DZWTQQ1
Brand: Texas Instruments
SKU: TMS5702134DZWTQQ1
Availability: InStock

new-10%

TMS5702134DZWTQQ1

Manufacturer part number:TMS5702134DZWTQQ1

Manufacturer:Texas Instruments

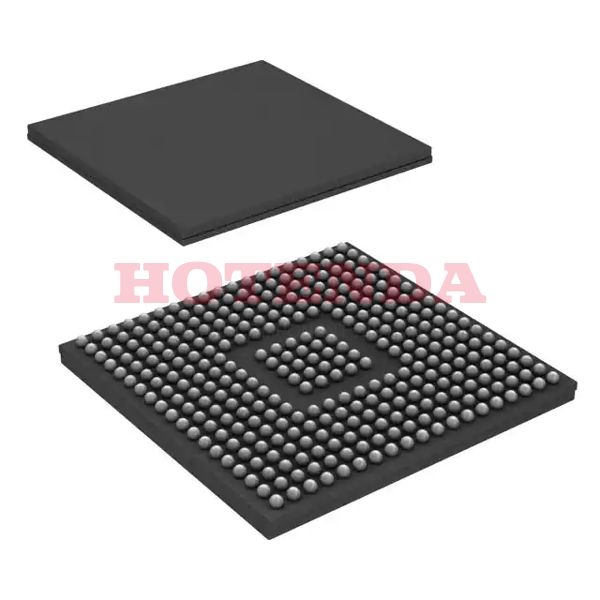

Description:2MB 2M x 8 FLASH ARM® Cortex®-R4F 16/32-Bit Microcontroller Automotive, AEC-Q100, Hercules™ TMS570 ARM® Cortex®-R Series 5702134 337 Pin 180MHz 1.2V 337-LFBGA

Case Package:SOT-23

Datasheet:TMS5702134DZWTQQ1 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Surface Mount	YES
Package / Case	337-LFBGA
Mounting Type	Surface Mount
Number of Pins	337
Series	Automotive, AEC-Q100, Hercules™ TMS570 ARM® Cortex®-R
Packaging	Tray
Operating Temperature	-40°C~125°C TA
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	337
Terminal Position	BOTTOM
Terminal Form	BALL
Supply Voltage	1.2V
Terminal Pitch	0.8mm
Frequency	180MHz
Base Part Number	5702134
Supply Voltage-Min (Vsup)	1.14V
Interface	CAN, EBI/EMI, I2C, LIN, SCI, SPI, UART, USART
Memory Size	2MB
Oscillator Type	External
Number of I/O	120
RAM Size	256K x 8
Voltage - Supply (Vcc/Vdd)	1.14V~3.6V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	ARM® Cortex®-R4F
Peripherals	DMA, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	16/32-Bit
Program Memory Size	2MB 2M x 8
Connectivity	CANbus, EBI/EMI, I2C, LINbus, MibSPI, SCI, SPI, UART/USART
Bit Size	32
Data Converter	A/D 24x12b
Has ADC	YES
DMA Channels	YES
PWM Channels	NO
DAC Channels	NO
Address Bus Width	22
Density	16 Mb
Core Architecture	ARM
EEPROM Size	64K x 8
On Chip Program ROM Width	8
External Data Bus Width	16
Number of UART Channels	2
Number of GPIO	144
Width	16mm
Height Seated (Max)	1.4mm
Length	16mm
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

TMS5702134DZWTQQ1 Product Details

TMS5702134DZWTQQ1 Overview

There is a 337-LFBGA package available. The board has 120 I/Os. Using the Mounting Type Surface Mount, the MCU is mounted on PCB. A 16/32-Bit core is used in order to power the IC chip. The type of memory it uses for its program is FLASH. -40°C~125°C TA is the temperature range at which this Microcontroller operates. Automotive, AEC-Q100, Hercules™ TMS570 ARM® Cortex®-R-series components are electrical components. In the case of this Microcontroller, the memory size of the program is 2MB 2M x 8. Powered by a ARM® Cortex®-R4F Core processor. Microcontroller's a MICROCONTROLLER, RISC uPs/uCs/Peripheral IC. IC Chip terminations are 337. As a result, this Microcontroller comes with a 32-bit size. Input voltage for the chip is 1.2V volts. A total of YES DMA channels are available. This IC part has a memory size of 2MB. There are a number of alternatives to the base part number 5702134 that you can find. Performing well when operated at frequency 180MHz can be achieved. Using NO PWM channels, the device works. On the chip, there are 337 pins that can be accessed. The CPU is based on ARM cores. In addition, it has 8 UART channels to choose from.
