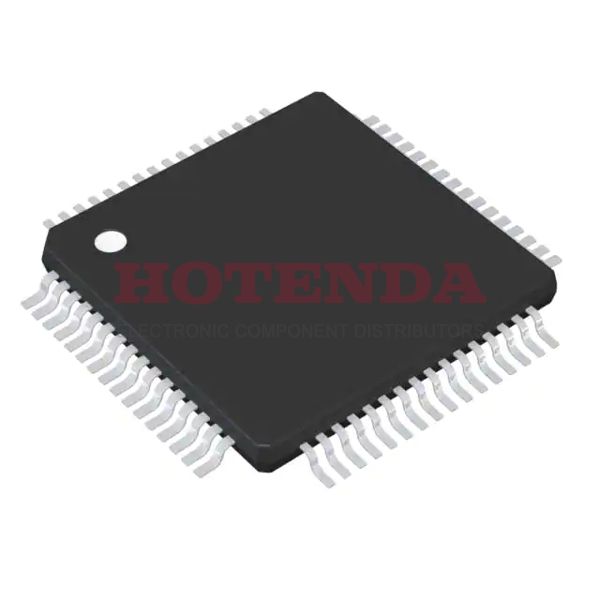

16KB 16K x 8 + 256B FLASH MSP430 16-Bit Microcontroller MSP430x4xx Series 64 Pin 8MHz 3.3V 64-LQFP
SOT-23
MSP430F4152IPM Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Lifecycle Status
ACTIVE (Last Updated: 2 days ago)
Factory Lead Time
6 Weeks
Contact Plating
Gold
Mounting Type
Surface Mount
Package / Case
64-LQFP
Surface Mount
YES
Number of Pins
64
Weight
342.689036mg
Operating Temperature
-40°C~85°C TA
Packaging
Tray
Series
MSP430x4xx
JESD-609 Code
e4
Pbfree Code
yes
Part Status
Active
Moisture Sensitivity Level (MSL)
3 (168 Hours)
Number of Terminations
64
Terminal Position
QUAD
Terminal Form
GULL WING
Peak Reflow Temperature (Cel)
260
Supply Voltage
3.3V
Terminal Pitch
0.5mm
Frequency
8MHz
Pin Count
64
Supply Voltage-Max (Vsup)
3.6V
Supply Voltage-Min (Vsup)
3V
Interface
I2C, IrDA, LIN, SCI, SPI, UART, USART
Memory Size
16kB
Oscillator Type
Internal
Number of I/O
56
RAM Size
512 x 8
Voltage - Supply (Vcc/Vdd)
1.8V~3.6V
uPs/uCs/Peripheral ICs Type
MICROCONTROLLER, RISC
Core Processor
MSP430
Peripherals
Brown-out Detect/Reset, LCD, POR, PWM, WDT
Program Memory Type
FLASH
Core Size
16-Bit
Program Memory Size
16KB 16K x 8 + 256B
Connectivity
I2C, IrDA, LINbus, SCI, SPI, UART/USART
Bit Size
16
Data Converter
A/D 8x10b
Watchdog Timer
Yes
Has ADC
YES
DMA Channels
NO
Data Bus Width
16b
PWM Channels
YES
DAC Channels
NO
Number of Timers/Counters
2
Boundary Scan
YES
Low Power Mode
YES
Number of A/D Converters
8
Number of Programmable I/O
48
Format
FIXED-POINT
Integrated Cache
NO
RAM (words)
0.5
RAM (bytes)
512
Number of Serial I/Os
1
Number of USB Channels
1
Height
1.6mm
Length
10mm
Width
10mm
Thickness
1.4mm
REACH SVHC
No SVHC
Radiation Hardening
No
RoHS Status
ROHS3 Compliant
Lead Free
Lead Free
In-Stock:1159 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
1
$3.96000
$3.96
10
$3.56000
$35.6
25
$3.36600
$84.15
160
$2.91719
$466.7504
640
$2.48336
$1589.3504
MSP430F4152IPM Product Details
MSP430F4152IPM Description
The MSP430F4152IPM from the MSP430 family is a mixed signal microcontroller which consists of several devices featuring different sets of peripherals targeted for various applications.
MSP430F4152IPM Features
Low Supply-Voltage Range, 1.8 V to 3.6 V
Ultralow Power Consumption Active Mode: 220 μA at 1 MHz, 2.2 V Standby Mode: 0.9μA Off Mode (RAM Retention): 0.1 μA
Five Power-Saving Modes
Wake-Up From Standby Mode in Less Than 6 μs
16-Bit RISC Architecture, 125-ns Instruction Cycle Time
16-Bit Timer_A With Three Capture/Compare Registers
16-Bit Timer_A With Five Capture/Compare Registers
Integrated LCD Driver With Contrast Control for Up to 144 Segments
Basic Timer With Real-Time Clock Feature
Brownout detector
On-Chip Comparator for Analog Signal Compare Function or Slope A/D
MSP430F4152IPM Applications
Analog & digital sensor systems
Remote controls
Thermostats
Digital timers
Hand-held meters
