Name: ATSAMD21E18A-AF
Brand: Microchip Technology
SKU: ATSAMD21E18A-AF
Price: 4.76000 USD
Availability: InStock

new-10%

ATSAMD21E18A-AF

Manufacturer part number:ATSAMD21E18A-AF

Manufacturer:Microchip Technology

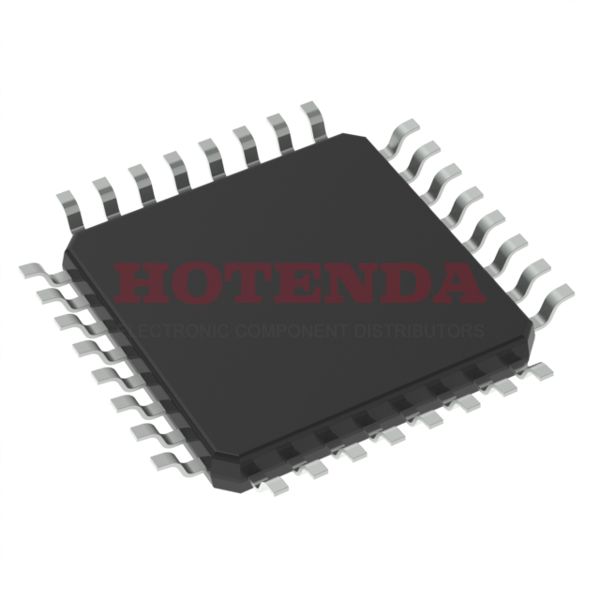

Description:256KB 256K x 8 FLASH ARM® Cortex®-M0+ 32-Bit Microcontroller Automotive, AEC-Q100, SAM D21E Series ATSAMD21E18 32 Pin 48MHz 3.3V 32-TQFP

Case Package:SOT-23

Datasheet:ATSAMD21E18A-AF Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	9 Weeks
Lifecycle Status	Production (Last Updated: 2 years ago)
Contact Plating	Tin
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	32-TQFP
Surface Mount	YES
Number of Pins	32
Supplier Device Package	32-TQFP (7x7)
Number of Terminals	32
Mounting Style	SMD/SMT
Interfaces	I2C/I2S/SPI/UART/USA
Data Converters	A/D 10x12b, D/A 1x10b
MSL	MSL 3 - 168 hours
DAC Resolution	10 bit
Qualification	AEC-Q100
Number of I/Os	26 I/O
Maximum Operating Temperature	+ 125 C
Minimum Operating Temperature	- 40 C
Interface Type	I2C, I2S, LIN, SPI, USART
Manufacturer	Microchip
Brand	Microchip Technology / Atmel
RoHS	Details
Schedule B	8542310000, 8542310000/8542310000/8542310000/8542310000/8542310000
Package	Tray
Base Product Number	ATSAMD21
Mfr	Microchip Technology
Product Status	Active
Package Shape	SQUARE
Number of I/O Lines	26
Operating Temperature	-40°C~125°C TA
Packaging	Tray
Series	Automotive, AEC-Q100, SAM D21E
Published	2014
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	32
Max Operating Temperature	125 °C
Min Operating Temperature	-40 °C
Subcategory	Microcontrollers - MCU
Terminal Position	QUAD
Terminal Form	GULL WING
Supply Voltage	3.3V
Terminal Pitch	0.8mm
Reach Compliance Code	compliant
Frequency	48MHz
Base Part Number	ATSAMD21E18
JESD-30 Code	S-PQFP-G32
Operating Supply Voltage	3.3V
Temperature Grade	AUTOMOTIVE
Interface	I2C, I2S, LIN, SPI, UART, USART, USB
Max Supply Voltage	3.63 V
Min Supply Voltage	1.62 V
Memory Size	256kB
Oscillator Type	Internal
Number of I/O	26
Speed	48MHz
RAM Size	32K x 8
Memory Type	FLASH
Voltage - Supply (Vcc/Vdd)	1.62V~3.6V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	ARM® Cortex®-M0+
Peripherals	Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	32-Bit
Program Memory Size	256KB 256K x 8
Connectivity	I2C, LINbus, SPI, UART/USART, USB
Bit Size	32
Data Converter	A/D 10x12b; D/A 1x10b
Watchdog Timer	Yes
Has ADC	YES
DMA Channels	YES
Data Bus Width	32b
PWM Channels	YES
DAC Channels	YES
Seated Height-Max	1.2 mm
Number of Timers/Counters	6
Product Type	ARM Microcontrollers - MCU
Core Architecture	ARM
EEPROM Size	--
Max Frequency	48 MHz
Number of A/D Converters	1
Number of Programmable I/O	26
Number of UART Channels	4
Number of ADC Channels	10 Channel
Max Junction Temperature (Tj)	100 °C
ROM Programmability	FLASH
Number of PWM Channels	12
Number of I2C Channels	4
Ambient Temperature Range High	85 °C
Number of SPI Channels	4
Number of USB Channels	1
Product	MCU
Product Category	ARM Microcontrollers - MCU
Device Core	ARM Cortex M0+
Length	7mm
Height Seated (Max)	1.2mm
Height	1.2 mm
Width	7 mm
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant

ATSAMD21E18A-AF Product Details

ATSAMD21E18A-AF Description

A 32-bit high-performance, low-power microcontroller based on the ARM Cortex-M0+ CPU core is the Microchip Technologies ATSAMD21E18A-AF. It is made for a variety of uses that call for great performance, little power consumption, and a tiny form factor. The microcontroller has 32KB of SRAM, 256KB of flash memory, and a number of peripherals, such as timers, analog-to-digital converters, and digital-to-analog converters. In order to make the development process simpler, it also has a complete set of development tools and software. The ATSAMD21E18A-AF is appropriate for a range of applications, including wearable technology, smart home automation, Internet of Things (IoT) devices, and more.
