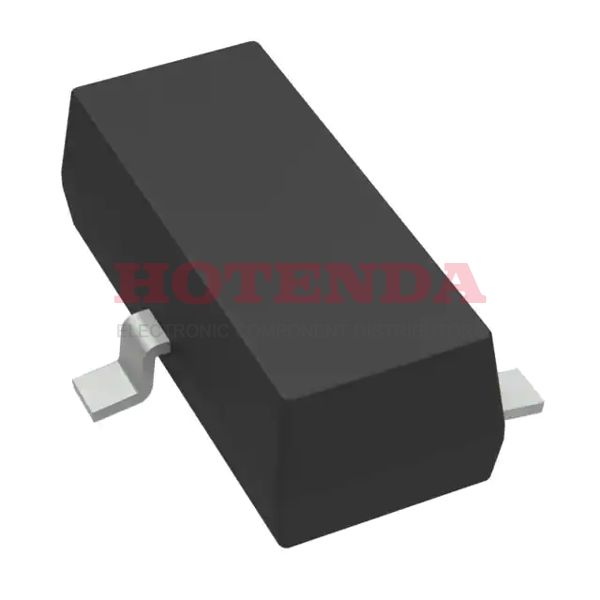

MCP809M3-4.63/NOPB Overview
There are 3 terminals connected to this power management, which makes it easy to mount. Tape & Reel (TR)-packaging is used. To assist you, this IC power includes 1 functions. There are 1 channels on this power managment ic that can be found in a series. Please refer to power management for TO-236-3, SC-59, SOT-23-3 functions. This IC power shares lots of benefits with other Simple Reset/Power-On Reset products. Specifies a reflow peak temperature of 260 for the package during reflow. When a supply voltage of 3V is applied to the power ic, it conducts. There is a voltage supply of 1 for the PMIC chip, and the chip conducts at that voltage. Using Surface Mount, IC management is mounted. The power management system can be categorized as a Power Management Circuits chip. There are 3 pins on the power managment ic. IC management can only work with a supply voltage of 1V volts. There should be no more than 5.5V volts of supply voltage (Vsup) in this power management. The recommended mounting type for IC management is Surface Mount. Temperature setting for the supervisors should be -40°C~105°C TA. If you want to search for similar IC managements of this manufacturer, you can always refer to MCP809, which is the base power ics number.
MCP809M3-4.63/NOPB Features
Simple Reset/Power-On Reset type
Minimum supply voltage of 1V
MCP809M3-4.63/NOPB Applications
There are a lot of Texas Instruments MCP809M3-4.63/NOPB Voltage Supervisors applications.
- DC stabilized power supply module
- Radar
- Power distribution systems of CCU
- Fire equipment power monitoring system
- DSP
- Power communication system
- Battery-powered equipment
- Transformer load monitoring equipment
- Medical-specific isolation transformer
- Detection of phase imbalance
