Name: LP2966IMM-1833
Brand: Texas Instruments
SKU: LP2966IMM-1833
Availability: InStock

new-10%

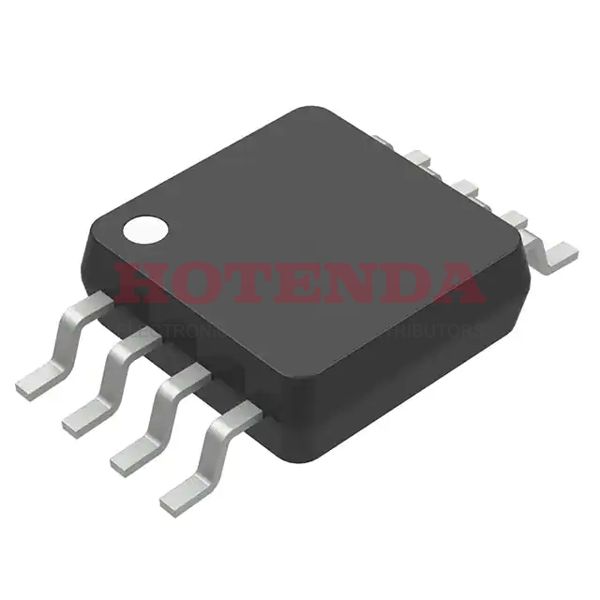

LP2966IMM-1833

Manufacturer part number:LP2966IMM-1833

Manufacturer:Texas Instruments

Description:Enable Fixed 0.65mm LP2966 PMIC 8 8-TSSOP, 8-MSOP (0.118, 3.00mm Width)

Case Package:SOT-23

Datasheet:LP2966IMM-1833 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	8-TSSOP, 8-MSOP (0.118, 3.00mm Width)
Number of Pins	8
Operating Temperature	-40°C~125°C
Packaging	Tape & Reel (TR)
JESD-609 Code	e0
Pbfree Code	no
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	8
ECCN Code	EAR99
Terminal Finish	Tin/Lead (Sn/Pb)
Subcategory	Other Regulators
Packing Method	TAPE AND REEL
Technology	CMOS
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Number of Functions	1
Terminal Pitch	0.65mm
Base Part Number	LP2966
Pin Count	8
Current - Supply (Max)	600μA
Number of Outputs	2
Voltage - Input (Max)	7V
Output Voltage	3.3V
Output Type	Fixed
Max Output Current	150mA
Voltage - Output 1	2.5V
Output Configuration	Positive
Quiescent Current	340μA
Control Features	Enable
Accuracy	1.5 %
Output Voltage 1	1.8V
Voltage - Output 2	1.8V
Voltage - Output (Min/Fixed)	1.8V 3.3V
Min Input Voltage	2.7V
Protection Features	Over Current, Over Temperature, Short Circuit
Current - Quiescent (Iq)	300μA
Voltage Dropout (Max)	0.27V @ 150mA
PSRR	60dB ~ 40dB (120Hz)
Current - Output 1	150mA
Dropout Voltage	135mV
Nominal Input Voltage	1.8V
Dropout Voltage1-Nom	0.135V
Voltage Tolerance-Max	3.5%
Input Voltage Absolute-Max	7.5V
Output Voltage Accuracy	1.5 %
Current - Output 2	150mA
Output Voltage 2	3.3V
Height	860μm
Length	3mm
Width	3mm
REACH SVHC	No SVHC
Radiation Hardening	No
RoHS Status	Non-RoHS Compliant
Lead Free	Contains Lead

LP2966IMM-1833 Product Details

LP2966IMM-1833 Overview

This Voltage Regulator IC comes inTape & Reel (TR) packaging. This battery regulator is contained in a 8-TSSOP, 8-MSOP (0.118, 3.00mm Width) package. There are 8 terminations on the gadget. The IC chip's output type is Fixed. The Linear Voltage Regulator's mounting type is Surface Mount. The IC Regulator is set to operate at -40°C~125°C degrees. This regulator's output function is configured to be Positive. IC voltage regulator has a sum of 8 pins. To ensure prompt, sufficient performance, this part features 2 outputs in total. Its dropout voltage is 10 volts. The component's pin number remains 8. FYI, the basic part number for this IC regulator is LP2966. This regulator IC is a typical Other Regulators. The way of packing the voltage regulator IC is TAPE AND REEL. It works in 150mA output current at mostIt operates in the 340μA Quiescent Current state.
